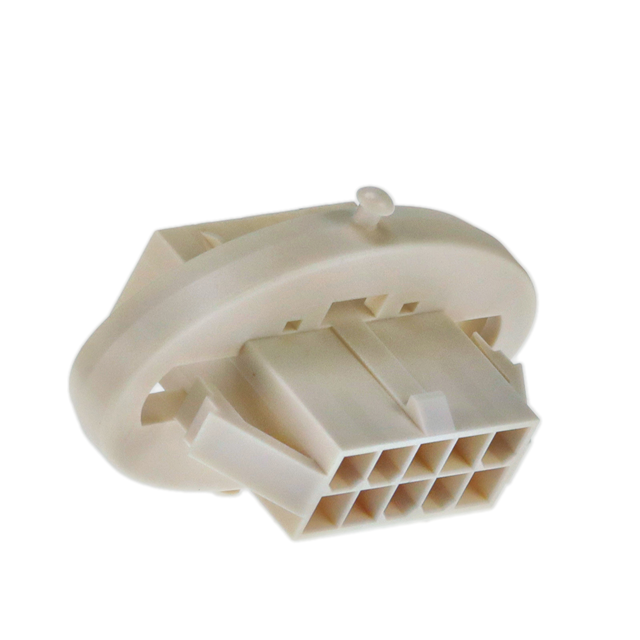

2070170010

Manufacturer :

Molex

Product Category :

Rectangular Connector Housings

Note :

Contacts Not Included

Housing Color :

Natural

Operating Temperature :

-40°C ~ 105°C

Number of Contact Rows :

2

Features :

Sealed

Mounting Type :

Panel Mount, Snap-In

Number of Contacts :

10(POS)

Voltage Rating Max :

600VDC/600VAC

Contact Gender :

Pin (Male)

Number of Positions :

10 Position

Package :

Bag

Housing Material :

Nylon

For Use With :

Molex Mini-Fit TPA2 172765 Series Pin Contacts

Product Height (mm) :

26(mm)

Contact Type :

Male Pin

Mounting Style :

Cable Mount / Free Hanging

Pitch :

4.2 mm

Operating Temp Range :

-40C to 105C

Minimum Operating Temperature :

- 40 C

Body Orientation :

Straight

Termination Style :

Crimp

Product Status :

Active

RoHS :

Details

Packaging :

Bulk

Contact Material :

Nylon

Pitch (mm) :

4.2(mm)

Type :

Plug Housing

Contact Termination :

Crimp

Base Product Number :

207017

Product :

Wire Housings

Connector Type :

PLUG

Color :

Natural

Application :

Power, Wire-to-Board

Flammability Rating :

UL 94V-0

Wire Gauge :

16-24(AWG)

Tradename :

Mini-Fit Sigma

Housing Gender :

PLUG

Series :

207017

Maximum Operating Temperature :

+ 105 C

Fastening Type :

Locking Ramp

Number of Rows :

2 Row

Gender :

PL

Product Length (mm) :

46.2(mm)

Row Spacing :

0.165 (4.20mm)
