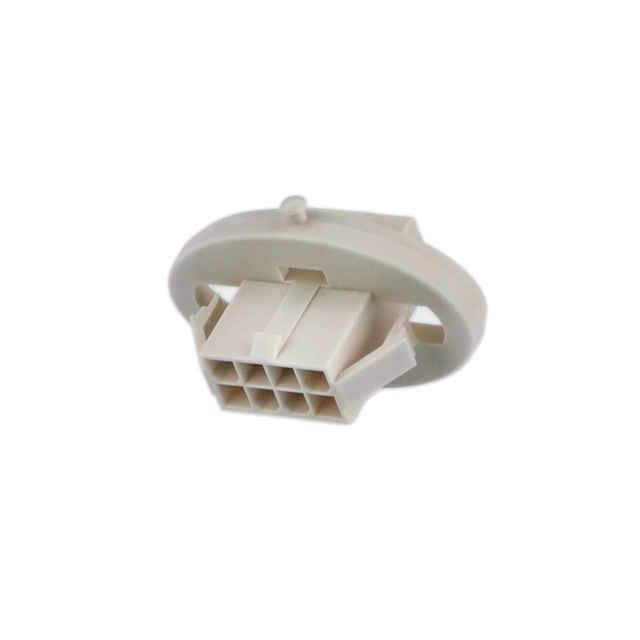

2070170008

Manufacturer :

Molex

Product Category :

Rectangular Connector Housings

For Use With :

Molex Mini-Fit TPA2 172765 Series Pin Contacts

Package :

Bulk

Tradename :

Mini-Fit Sigma

Contact Material :

Nylon

Wire Gauge :

16-24(AWG)

Number of Contacts :

8(POS)

Product Status :

Active

Termination Style :

Crimp

Operating Temperature :

-40°C ~ 105°C

Housing Color :

Natural

Voltage Rating Max :

600VDC/600VAC

Series :

207017

Mounting Style :

Cable Mount / Free Hanging

Housing Material :

Nylon

Contact Gender :

Pin (Male)

Mounting Type :

Panel Mount, Snap-In

Housing Gender :

PLUG

Maximum Operating Temperature :

+ 105 C

Base Product Number :

207017

Note :

Contacts Not Included

Features :

Sealed

RoHS :

Details

Row Spacing :

0.165 (4.20mm)

Minimum Operating Temperature :

- 40 C

Body Orientation :

Straight

Pitch (mm) :

4.2(mm)

Number of Rows :

2 Row

Color :

Natural

Pitch :

4.2 mm

Contact Type :

Male Pin

Number of Positions :

8 Position

Fastening Type :

Locking Ramp

Application :

Power, Wire-to-Board

Flammability Rating :

UL 94V-0

Type :

Plug Housing

Product Height (mm) :

26(mm)

Product Length (mm) :

42(mm)

Number of Contact Rows :

2

Product :

Wire Housings

Gender :

PL

Contact Termination :

Crimp

Connector Type :

PLUG

Operating Temp Range :

-40C to 105C

Packaging :

Bulk
