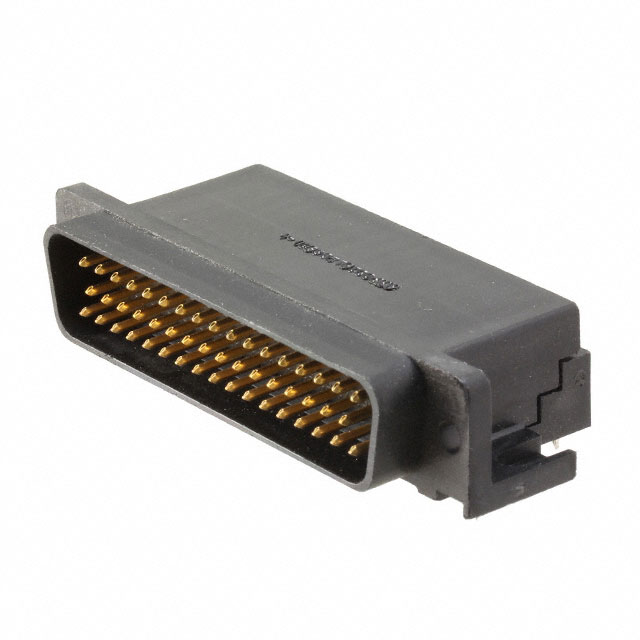

206971-1

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

D-Sub Connector Assemblies

JESD-609 Code :

e0

Reference Standard :

UL, CSA

Min Operating Temperature :

-55°C

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Contact Style :

RND PIN-SKT

MIL Conformance :

No

Color :

Black

Plating Thickness :

FLASH inch

Termination :

Solder

Flammability Rating :

UL94 V-0

ECCN Code :

EAR99

Length :

66.92mm

Empty Shell :

No

Lead Free :

Contains Lead

Contact Plating :

Gold

IEC Conformance :

No

Voltage - Rated :

125V

UL Flammability Code :

94V-0

Mount :

Through Hole

Contact Material :

Brass

Shell Material :

POLYETHYLENE

PCB Contact Pattern :

STAGGERED

Total Number of Contacts :

50

Pitch :

2.76mm

Current Rating :

6A

DIN Conformance :

No

Contact Finish - Mating :

NOT SPECIFIED

Housing Material :

Thermoplastic

Additional Feature :

AMPLIMITE

Orientation :

RIGHT ANGLE

PCB Contact Row Spacing :

2.8448 mm

Gender :

Male

Number of Rows :

3

ELV :

Compliant

Filter Feature :

No

Depth :

28.32mm

Contact Resistance :

20mOhm

Max Operating Temperature :

105°C

Number Of PCB Rows :

3

Contact Shape :

Square

Shell Size :

5/D

PCB Mounting Orientation :

RIGHT ANGLE

Option :

GENERAL PURPOSE

Body Breadth :

0.558 inch

Hole Diameter :

3.05 mm

Contact Pattern :

STAGGERED

Pbfree Code :

No

Connector Type :

PLUG

Number of Ports :

1

Lead Length :

3.18mm

Reliability :

COMMERCIAL

Mixed Contacts :

No

Number of Terminations :

50

Rated Current (Signal) :

6A

RoHS Status :

RoHS Compliant
