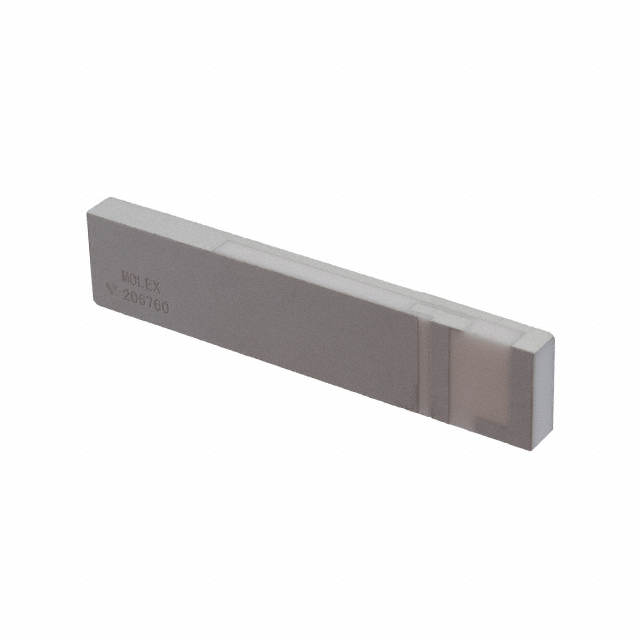

2067600001
Or copy the link below:
- Mfr.Part #
- 2067600001
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- RF ANT 829MHZ/2.205GHZ CER PATCH
- Stock
- 8,904
- In Stock ：
- 8,904
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- RF Antennas
- Termination :
- Solder
- Height (Max) :
- 0.118 3.00mm
- Power - Max :
- 2W
- Packaging :
- Tape and Reel (TR)
- Applications :
- GENERAL PURPOSE
- Frequency (Center/Band) :
- 829MHz 2.205GHz
- RoHS Status :
- ROHS3 Compliant
- Factory Lead Time :
- 15 Weeks
- Gain :
- 1.3dBi, 4.4dBi
- Antenna Type :
- Ceramic Patch
- Series :
- 206760
- Frequency Group :
- Wide B
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Return Loss :
- -5dB
- Frequency Range :
- 698MHz~960MHz 1.575GHz 1.71GHz~2.7GHz
- Number of Bands :
- 2
- Mounting Type :
- Surface Mount
- Datasheets
- 2067600001
2 Bands Ceramic Patch Wide B Surface Mount Solder 829MHz 2.205GHz 1.3dBi, 4.4dBi Tape & Reel (TR) 0.118 3.00mm General Purpose
2067600001 Overview
A generalization of RF Antennas can be made using Surface Mount.There are several Antenna RFs in the 206760 series.Packaging is solid wRF modulatorh a Tape & Reel (TR) enclosure.
2067600001 Features
With Surface Mount
206760 series
2067600001 Applications
There are a lot of Molex
2067600001 RF Antennas applications.
- Satellites
- Transmission
- Cellphones
- Laptops
- Marine Navigation
- Avionics
- GPS
- GLONASS
- BeiDou
- Galileo
