Mfr.Part #
2065657-1
Manufacturer
TE Connectivity Aerospace Defense and Marine
Package / Case
Datasheet
Download
Description
CONN RCPT HI SPEED 120P EDGE MT
Stock
17,894
In Stock :
17,894

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
TE Connectivity Aerospace Defense and Marine
Product Category :
Specialized
Mixed Contacts :
No
Length :
24.95mm
ELV :
Compliant
IEC Conformance :
No
Number of Positions Loaded :
All
Feature :
Shielded
Shielding :
Unshielded
REACH SVHC :
Unknown
DIN Conformance :
No
Orientation :
RIGHT ANGLE
ECCN Code :
EAR99
Published :
2011
MIL Conformance :
No
PCB Contact Pattern :
MIXED
Max Current Rating :
700mA
Plating Thickness :
760 nm
Contact Pattern :
RECTANGULAR
Termination :
Press-Fit
Contact Resistance :
1MOhm
Factory Lead Time :
5 Weeks
Number of Contacts :
80
Current Rating :
600mA
Mounting Type :
Board Edge, Through Hole, Right Angle
Number of Pairs :
40
Body Breadth :
0.617 inch
Number Of PCB Rows :
16
Mount :
Edge, Through Hole
Number of Conductors :
ONE
UL Flammability Code :
94V-0
Packaging :
Tube
Connector Usage :
Backplane
Dielectric Withstanding Voltage :
650VAC V
Gender :
Receptacle
Row Spacing :
1.5 mm
Connector Style :
High Speed
Operating Temperature :
-65°C~105°C
Circuit Application :
Signal
Lead Free :
Lead Free
RoHS Status :
RoHS Compliant
Contact Layout, Typical :
80 Single Signal, 40 Ground
Number of Columns :
10
Contact Style :
SQ PIN-SKT
Number of Rows :
8
Material Flammability Rating :
UL94 V-0
Number of Positions :
120
Reference Standard :
UL
Current Rating (Amps) :
0.600A
PCB Mounting Orientation :
RIGHT ANGLE
Make First / Break Last :
No
Pitch :
0.098 2.50mm
Moisture Sensitivity Level (MSL) :
1 (Unlimited)
Contact Material :
Copper, Nickel
JESD-609 Code :
e3
Option :
GENERAL PURPOSE
Filter Feature :
No
Series :
Z-Pack HM-ZD
Lifecycle Status :
ACTIVE (Last Updated: 4 days ago)
Contact Plating :
Gold
Connector Type :
Receptacle, Female Sockets
Flammability Rating :
UL94 V-0
Depth :
28.9mm
Operating Supply Voltage :
250V
Housing Material :
Polyester
Reliability :
COMMERCIAL
Housing Color :
Grey
Datasheets
2065657-1
Introducing Specialized TE Connectivity Aerospace Defense and Marine 2065657-1 from Chip IC,where excellence meets affordability. This product stands out with its Mounting Type:Board Edge, Through Hole, Right Angle, Operating Temperature:-65°C~105°C, 2065657-1 pinout, 2065657-1 datasheet PDF, 2065657-1 amp .Beyond Specialized TE Connectivity Aerospace Defense and Marine 2065657-1 ,we also offer 6469025-1, 1892787-6, 0761703038, Our vast inventory has you covered. Contact us now for immediate solutions.

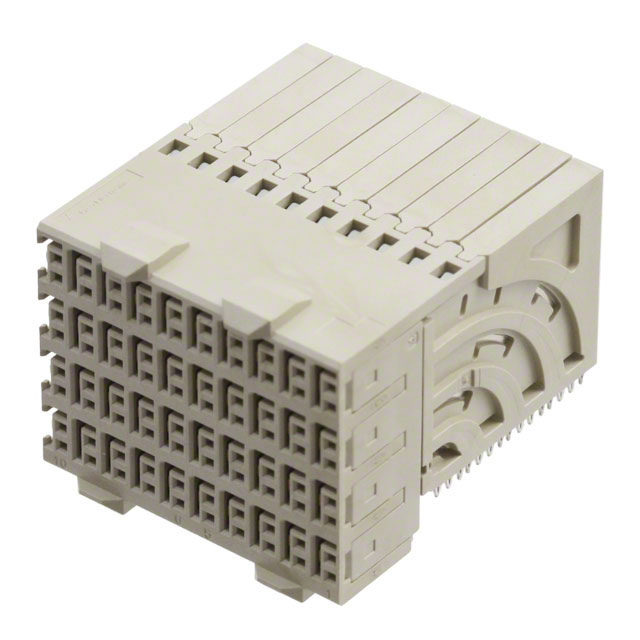

TE Connectivity Aerospace Defense and Marine 2065657-1


Z-PACK HM-Zd Series Receptacle, Female Sockets Press-Fit 120 Positions Pitch: 0.098 2.50mm -65°C~105°C Tube Board Edge, Through Hole, Right Angle

2065657-1 Overview


The product is packaged in Receptacle, Female Sockets.This device is mounted in the Board Edge, Through Hole, Right Angle position.It has been determined that a Tube case is necessary to package the product.There is a product in the Z-PACK HM-Zd Series.There are a number of advantages to its Shielded feature.Part Edge, Through Hole is mounted to the part.As a result, the device runs at -65°C~105°C Operating Temperature.A supply voltage of 250V is required to operate this Backplane Connector.
