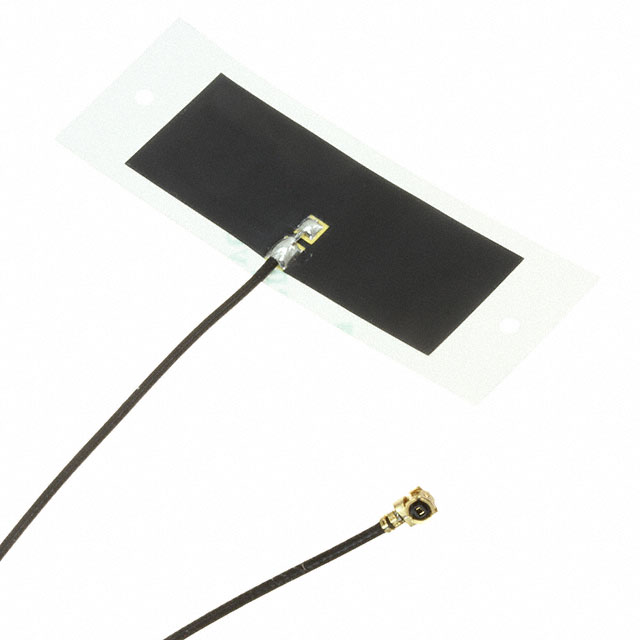

2065600100
Or copy the link below:
- Mfr.Part #
- 2065600100
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- RF ANT 1.561/1.575GHZ FLAT PATCH
- Stock
- 13,784
- In Stock ：
- 13,784
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- RF Antennas
- Feature :
- Cable - 100mm
- Series :
- 206560
- Operating Frequency-Max :
- 1610MHz
- Antenna Type :
- Flat Patch
- Mounting Type :
- Adhesive
- Polarization :
- Linear
- RF/Microwave Device Type :
- GPS ANTENNA
- Characteristic Impedance :
- 50Ohm
- Omnidirectional :
- yes
- Height (Max) :
- 0.004 0.10mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Frequency Group :
- Wide B
- Applications :
- Beidou, GLONASS, GNSS, GPS
- RoHS Status :
- ROHS3 Compliant
- Gain :
- 0.9dBi, 1dBi, 1.37dBi
- Construction :
- Module
- Factory Lead Time :
- 11 Weeks
- Return Loss :
- -8dB
- RF Family/Standard :
- Navigation
- Frequency (Center/Band) :
- 1.561GHz 1.575GHz 1.602GHz
- Frequency Range :
- 1.558GHz~1.61GHz
- Operating Frequency-Min :
- 1558MHz
- Termination :
- U.FL (UMCC), IPEX MHF1
- Number of Bands :
- 3
- Datasheets
- 2065600100
2065600100 Documents
3 Bands Flat Patch Wide B Adhesive U.FL (UMCC), IPEX MHF1 1.561GHz 1.575GHz 1.602GHz 0.9dBi, 1dBi, 1.37dBi 0.004 0.10mm Beidou, GLONASS, GNSS, GPS
2065600100 Overview
A generalization of RF Antennas can be made using Adhesive.There are several Antenna RFs in the 206560 series.
2065600100 Features
With Adhesive
206560 series
2065600100 Applications
There are a lot of Molex
2065600100 RF Antennas applications.
- Satellites
- Transmission
- Cellphones
- Laptops
- Marine Navigation
- Avionics
- GPS
- GLONASS
- BeiDou
- Galileo
