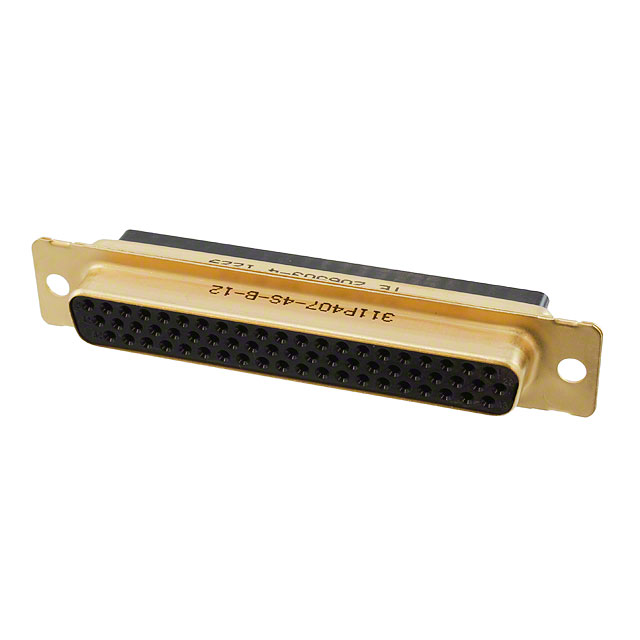

206503-4
Or copy the link below:
- Mfr.Part #
- 206503-4
- Manufacturer
- TE Connectivity Aerospace Defense and Marine
- Package / Case
- Datasheet
- Download
- Description
- CONN D-SUB HD HOUSING RCPT 62POS
- Stock
- 22
- In Stock ：
- 22
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity Aerospace Defense and Marine
- Product Category :
- D-Sub, D-Shaped Connector Housings
- MIL Conformance :
- No
- Mixed Contacts :
- No
- Shell Material, Finish :
- Brass, Gold Plated
- Published :
- 2006
- Current Rating :
- 5A
- Packaging :
- Bulk
- Body Breadth :
- 0.509 inch
- Flange Feature :
- Housing/Shell (Unthreaded)
- Series :
- AMPLIMITE 90
- Shell Size, Connector Layout :
- 4 DC C High Density
- ELV :
- Compliant
- Contact Design :
- PREASSEM CONN
- Mount :
- Cable, Free Hanging
- Length :
- 68.94mm
- REACH SVHC :
- Unknown
- Contact Style :
- Crimp
- Factory Lead Time :
- 8 Weeks
- RoHS Status :
- RoHS Compliant
- Additional Feature :
- COMPATABLE CONTACTS: 206071-1; 206496-1; 91067-1
- Hole Diameter :
- 3.048 mm
- Total Number of Contacts :
- 62
- Depth :
- 12.93mm
- Mounting Type :
- Free Hanging (In-Line)
- Min Operating Temperature :
- -55°C
- Number of Positions :
- 62
- Body Material :
- Brass
- Housing Color :
- Black
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Plating :
- Gold
- Option :
- GENERAL PURPOSE
- Gender :
- Receptacle
- DIN Conformance :
- No
- Mating Information :
- MULTIPLE MATING PARTS AVAILABLE
- Empty Shell :
- No
- Lifecycle Status :
- ACTIVE (Last Updated: 1 week ago)
- Sealable :
- No
- Connector Style :
- D-Sub, High Density
- Lead Free :
- Lead Free
- Number of Rows :
- 3
- Note :
- Contacts Not Included
- Pitch :
- 2.7mm
- Contact Type :
- Signal
- IEC Conformance :
- No
- Connector Type :
- Receptacle for Female Contacts
- Orientation :
- Straight
- ECCN Code :
- EAR99
- Housing Material :
- Polyphenylene
- Reliability :
- COMMERCIAL
- Reference Standard :
- UL, CSA
- Max Operating Temperature :
- 125°C
- Filter Feature :
- No
- Datasheets
- 206503-4
