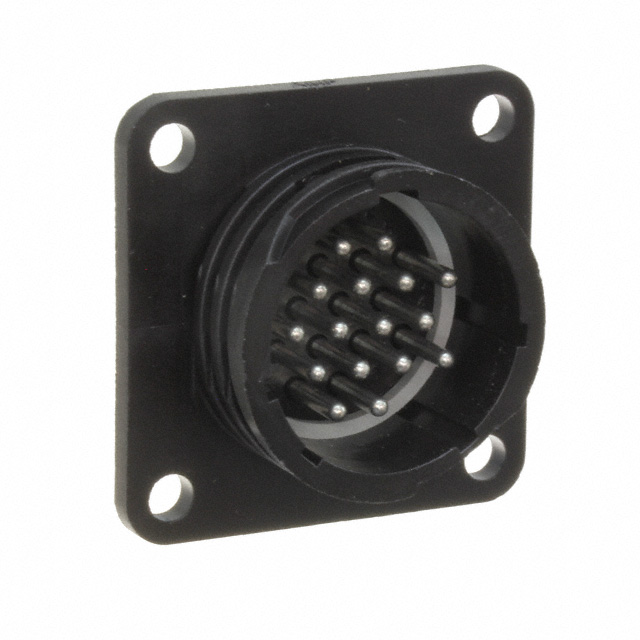

206404-2
Or copy the link below:
- Mfr.Part #
- 206404-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT MALE 16P TIN SLDR CUP
- Stock
- 20
- In Stock ：
- 20
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Circular Connector Assemblies
- Lead Free :
- Lead Free
- Assembly Length :
- 44.704mm
- Number of Power Positions :
- 0
- Series :
- CPC Series 1
- Packaging :
- Tray
- Backshell Type :
- Solid
- Shell Material :
- Thermoplastic
- ELV :
- Compliant
- Filter Feature :
- No
- DIN Conformance :
- No
- Factory Lead Time :
- 19 Weeks
- RoHS Status :
- RoHS Compliant
- Material Flammability Rating :
- UL94 V-0
- MIL Conformance :
- No
- Option :
- GENERAL PURPOSE
- Sealable :
- yes
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Color :
- Black
- Published :
- 1997
- IEC Conformance :
- No
- Flammability Rating :
- UL94 V-0
- Termination :
- Solder Cup
- Lifecycle Status :
- ACTIVE (Last Updated: 5 days ago)
- Fastening Type :
- Threaded
- VDE Tested :
- No
- Operating Supply Voltage :
- 250V
- Insulation Material :
- Plastic
- Pbfree Code :
- yes
- Number of Positions :
- 16
- Mounting Type :
- Panel Mount
- Contact Finish - Mating :
- Tin
- Orientation :
- Keyed
- Shell Size - Insert :
- 17-16
- Voltage - Rated :
- 250VAC/DC
- Contact Material :
- Brass
- Mounting Feature :
- Flange
- Mount :
- Panel
- Operating Temperature :
- -55°C~105°C
- Empty Shell :
- No
- Current Rating :
- 13A
- Total Number of Contacts :
- 16
- Mating Alignment :
- With
- Mixed Contacts :
- No
- Connector Type :
- Receptacle, Male Pins
- Contact Finish Thickness - Mating :
- 100.0μin 2.54μm
- Datasheets
- 206404-2
Receptacle, Male Pins Thermoplastic Panel Mount 16 Positions Solder Cup Tin Tray Keyed Threaded
206404-2 Overview
This product is packaged in a Receptacle, Male Pins box.Panel Mount indicates that the device is mounted.An Tray case is utilized for packaging the product.The product is a part of the CPC Series 1 Series.By Panel, the part is mounted.Operating temperature is set to -55°C~105°C.
206404-2 Features
CPC Series 1 series
206404-2 Applications
There are a lot of TE Connectivity AMP Connectors
206404-2 Circular Connectors applications.
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
