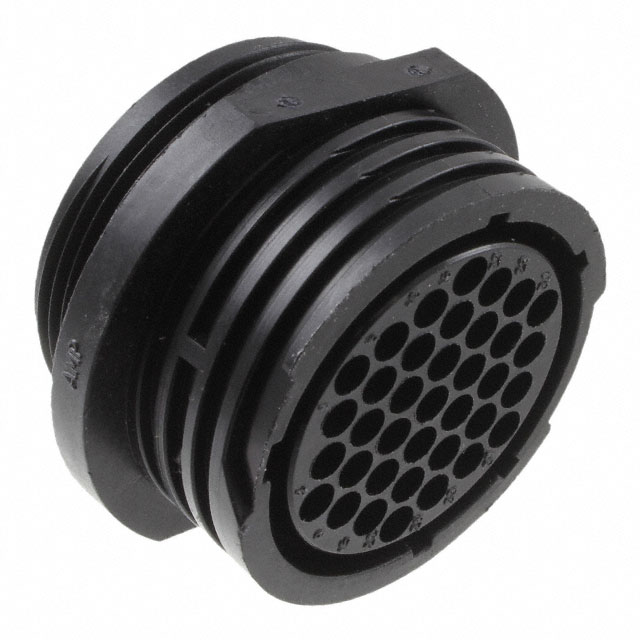

206306-4
Or copy the link below:
- Mfr.Part #
- 206306-4
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RCP HSG FMALE 37POS INLINE
- Stock
- 106
- In Stock ：
- 106
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Circular Connector Housings
- ELV :
- Compliant
- Type :
- For Female Sockets
- Material Flammability Rating :
- UL94 V-0
- Filter Feature :
- No
- Flammability Rating :
- UL94 V-0
- IEC Conformance :
- No
- Mount :
- Cable, Free Hanging
- Operating Supply Voltage :
- 600V
- Total Number of Contacts :
- 37
- Insert Material :
- Thermoplastic
- Ingress Protection :
- Environment Resistant
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Pbfree Code :
- yes
- Orientation :
- A
- Factory Lead Time :
- 17 Weeks
- Connector Type :
- Receptacle Housing
- Series :
- CPC Series 1
- Packaging :
- Bulk
- Sealable :
- yes
- Contact Shape :
- Circular
- Shielding :
- Unshielded
- Housing Color :
- Black
- Empty Shell :
- yes
- Shell Material :
- Polyamide (PA), Nylon
- Contact Type :
- Crimp
- Published :
- 2005
- Number of Positions :
- 37
- MIL Conformance :
- No
- Lifecycle Status :
- ACTIVE (Last Updated: 3 days ago)
- Contact Size :
- 16
- Ratings :
- IP65
- DIN Conformance :
- No
- Shell Size - Insert :
- 23-37
- Contact Gender :
- FEMALE
- Number of Power Positions :
- 0
- Number of Ports :
- 1
- Operating Temperature :
- -55°C~105°C
- Housing Material :
- Nylon
- VDE Tested :
- No
- Length :
- 27.18mm
- RoHS Status :
- RoHS Compliant
- Mounting Type :
- Free Hanging (In-Line)
- Depth :
- 44.02mm
- Fastening Type :
- Threaded
- Mating Retention :
- With
- Note :
- Contacts Not Included
- Datasheets
- 206306-4
Receptacle Housing Polyamide (PA), Nylon Free Hanging (In-Line) 37 Positions Bulk Threaded Unshielded Contacts Not Included CPC Series 1
206306-4 Overview
Packaging for this item is Receptacle Housing.There is a mounting type of Free Hanging (In-Line) for this device.It is necessary to use a Bulk case for packaging the product.This product is part of the CPC Series 1 Series.There are many benefits associated with this part that are shared with other For Female Sockets products.This part requires a Cable, Free Hanging socket for mounting.A variety of tasks can be managed through its 1 ports.
206306-4 Features
CPC Series 1 series
206306-4 Applications
There are a lot of TE Connectivity AMP Connectors
206306-4 Circular Connectors applications.
- Cell Phones
- Digital Multimeters, PLC's (Programming Logic Controllers)
- RADAR processing, digital oscilloscopes
- CMOS Image sensors for mobile applications
- Medical Instrumentation and medical imaging
- Music recording
- Digital signal processing
- Scientific instruments
- Rotary encoder
- Displaying
