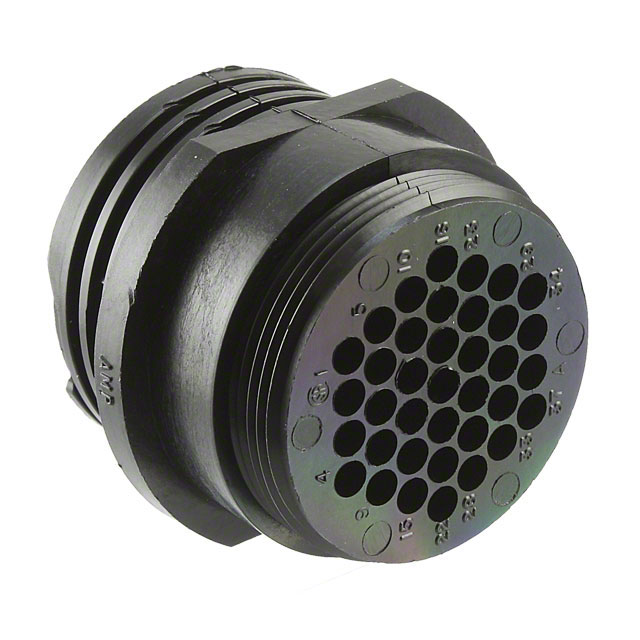

206151-2
Or copy the link below:
- Mfr.Part #
- 206151-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT HSG MALE 37POS INLINE
- Stock
- 616
- In Stock ：
- 616
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Circular Connector Housings
- Contact Size :
- 16
- Operating Temperature :
- -55°C~105°C
- Ratings :
- IP65
- Shell Material :
- Polyamide (PA), Nylon
- Number of Ports :
- 1
- Housing Color :
- Black
- Type :
- For Male Pins
- Series :
- CPC Series 1
- REACH SVHC :
- No SVHC
- Insulation Material :
- Thermoplastic
- Shell Size - Insert :
- 23-37
- RoHS Status :
- RoHS Compliant
- Contact Shape :
- Circular
- Flammability Rating :
- UL94 V-0
- Body Material :
- Glass, Thermoplastic
- Factory Lead Time :
- 5 Weeks
- MIL Conformance :
- No
- Number of Terminations :
- 37
- Connector Type :
- Receptacle Housing
- Packaging :
- Bulk
- Current Rating :
- 13A
- Fastening Type :
- Threaded
- Voltage - Rated AC :
- 250V
- Number of Power Positions :
- 0
- IEC Conformance :
- No
- Empty Shell :
- yes
- Depth :
- 44.01mm
- Insulation Resistance :
- 5GOhm
- Contact Type :
- Crimp
- Operating Supply Voltage :
- 600V
- Mount :
- Panel
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Total Number of Contacts :
- 37
- Published :
- 1997
- ELV :
- Compliant
- Pbfree Code :
- yes
- Shielding :
- Unshielded
- Diameter :
- 44.01mm
- Gender :
- Receptacle
- Orientation :
- A
- Filter Feature :
- No
- Note :
- Contacts Not Included
- Max Voltage Rating (AC) :
- 250V
- Lifecycle Status :
- ACTIVE (Last Updated: 3 days ago)
- Mating Retention :
- With
- DIN Conformance :
- No
- Mounting Type :
- Free Hanging (In-Line)
- Length :
- 34.29mm
- Material Flammability Rating :
- UL94 V-0
- Lead Free :
- Lead Free
- Contact Gender :
- Male
- Voltage - Rated :
- 250V
- Sealable :
- No
- Height :
- 38.22mm
- Datasheets
- 206151-2
Receptacle Housing Polyamide (PA), Nylon Free Hanging (In-Line) Bulk Threaded Unshielded Contacts Not Included CPC Series 1
206151-2 Overview
A Receptacle Housing package is included with it.Its mounting type is Free Hanging (In-Line).Packaging is performed using a Bulk case.It is part of the CPC Series 1 Series of products.Other [0] products share many of the same benefits as this part.If you wish to mount this part, you will need to use a Panel socket.The device is equipped with 1 ports for the management of a variety of tasks.A 37 termination involves terminating the transmission line with an impedance-matching device.
206151-2 Features
37 basic kinds of terminations
CPC Series 1 series
206151-2 Applications
There are a lot of TE Connectivity AMP Connectors
206151-2 Circular Connectors applications.
- RADAR processing, digital oscilloscopes
- CMOS Image sensors for mobile applications
- Medical Instrumentation and medical imaging
- Music recording
- Digital signal processing
- Scientific instruments
- Rotary encoder
- Displaying
- Transducer
- Microcontrollers.
