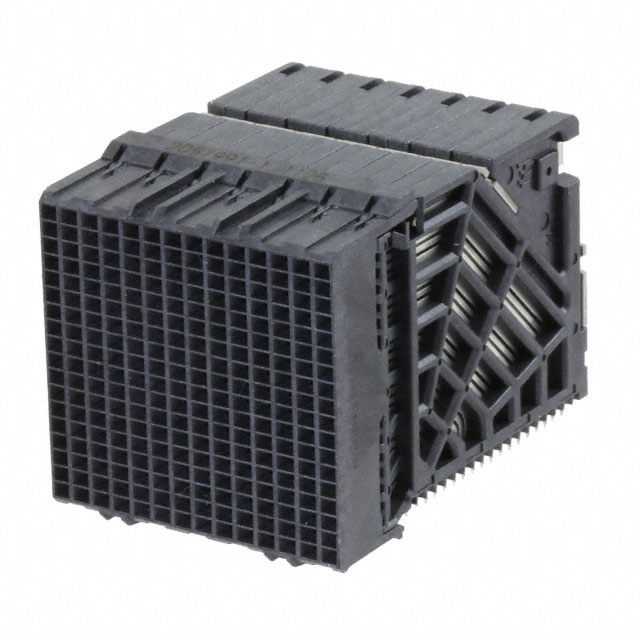

2057991-1
Or copy the link below:
- Mfr.Part #
- 2057991-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT IMPACT 252POS EDGE MNT
- Stock
- 80
- In Stock ：
- 80
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Specialized
- Differential Pairs per Column :
- 6
- Length - Tail :
- 1.2mm
- Length :
- 26.5938mm
- Contact Current Rating :
- 750mA
- Termination :
- Press-Fit
- Mounting Type :
- Board Edge, Through Hole, Right Angle
- Housing Color :
- Black
- Number of Ground Positions :
- 84
- Underplate Material :
- Nickel
- Series :
- Impact
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Row Spacing :
- 1.35 mm
- Contact Plating :
- Gold, Tin
- Stackable :
- No
- Plating Thickness :
- 1.27μm
- Current Rating (Amps) :
- 0.75A
- Voltage - Rated :
- 30V
- Housing Material :
- Polymer
- Material Flammability Rating :
- UL94 V-0
- PCB Thickness :
- 990.6μm
- Differential Signaling :
- yes
- Number of Pairs :
- 84
- Pitch :
- 1.905mm
- Color :
- Black
- Packaging :
- Tube
- Make First / Break Last :
- No
- Orientation :
- RIGHT ANGLE
- Number of Rows :
- 18
- Max Operating Temperature :
- 185°C
- Connector Type :
- Receptacle, Female Sockets
- Height :
- 25.4mm
- RoHS Status :
- RoHS Compliant
- Contact Finish :
- Gold
- Hole Diameter :
- 381 µm
- Connector Style :
- Impact
- Contact Style :
- Press-Fit
- Data Rate :
- 25 Gbps
- Operating Temperature :
- -55°C~ 85°C
- Width :
- 37.3mm
- Flammability Rating :
- UL94 V-0
- Factory Lead Time :
- 17 Weeks
- Number of Signal Positions :
- 168
- Number of Columns :
- 14
- Published :
- 2014
- Number of Positions :
- 252
- Contact Finish Thickness :
- 30.0μin 0.76μm
- PCB Mounting Orientation :
- RIGHT ANGLE
- Min Operating Temperature :
- -67°C
- ELV :
- Compliant
- Number of Positions Loaded :
- All
- Datasheets
- 2057991-1
Impact Series Receptacle, Female Sockets Press-Fit Gold Black 30.0μin 0.76μm 252 Positions Pitch: 1.905mm -55°C~ 85°C Tube Board Edge, Through Hole, Right Angle
2057991-1 Overview
The product comes in a package of Receptacle, Female Sockets.Board Edge, Through Hole, Right Angle is the mount type.Tube cases are used to package the product.This product is in the Impact Series.When the temperature falls below 185°C, it is best to use it.Minimum temperature is -67°C.Operating temperature is -55°C~ 85°C.
2057991-1 Features
Impact series
2057991-1 Applications
There are a lot of TE Connectivity AMP Connectors
2057991-1 Backplane Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
