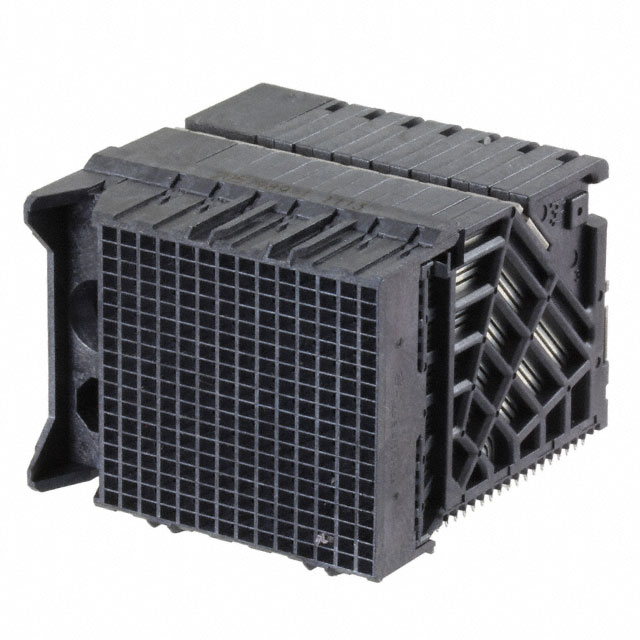

2057989-1
Or copy the link below:
- Mfr.Part #
- 2057989-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT IMPACT 252POS EDGE MNT
- Stock
- 23,539
- In Stock ：
- 23,539
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Specialized
- Height :
- 25.4mm
- Number of Signal Positions :
- 168
- Number of Rows :
- 18
- Underplate Material :
- Nickel
- Differential Signaling :
- yes
- PCB Mounting Orientation :
- RIGHT ANGLE
- Operating Temperature :
- -55°C~ 85°C
- Series :
- Impact
- Orientation :
- RIGHT ANGLE
- Pitch :
- 0.075 1.91mm
- PCB Thickness :
- 990.6μm
- Length - Tail :
- 1.2mm
- Housing Material :
- Polymer
- Data Rate :
- 25 Gbps
- Contact Finish :
- Gold
- Feature :
- Board Guide
- Number of Columns :
- 14
- Connector Usage :
- Daughtercard
- Flammability Rating :
- UL94 V-0
- Differential Pairs per Column :
- 6
- Row Spacing :
- 1.3462 mm
- Connector Type :
- Receptacle, Female Sockets
- RoHS Status :
- RoHS Compliant
- Number of Positions Loaded :
- All
- ELV :
- Compliant
- Termination :
- Press-Fit
- Connector Style :
- Impact, Guide Left
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Color :
- Black
- Factory Lead Time :
- 10 Weeks
- Contact Current Rating :
- 750mA
- Mounting Type :
- Board Edge, Through Hole, Right Angle
- Hole Diameter :
- 381 µm
- Contact Plating :
- Gold, Tin
- Published :
- 2014
- Number of Ground Positions :
- 84
- Contact Finish Thickness :
- 30.0μin 0.76μm
- Material Flammability Rating :
- UL94 V-0
- Width :
- 37.3mm
- Packaging :
- Tube
- Plating Thickness :
- 760 nm
- Number of Positions :
- 252
- Make First / Break Last :
- No
- Length :
- 34.2mm
- Datasheets
- 2057989-1
Impact Series Receptacle, Female Sockets Press-Fit Gold Black 30.0μin 0.76μm 252 Positions Pitch: 0.075 1.91mm -55°C~ 85°C Tube Board Edge, Through Hole, Right Angle
2057989-1 Overview
Currently, it is packaged in Receptacle, Female Sockets.The mounting type of the device is Board Edge, Through Hole, Right Angle.A Tube case is used to package the product.A product of the Impact Series, it belongs to the range of products of that series.A number of features make the Board Guide feature more powerful.-55°C~ 85°C Operating Temperature is the default operating temperature for the device.
2057989-1 Features
Impact series
2057989-1 Applications
There are a lot of TE Connectivity AMP Connectors
2057989-1 Backplane Connectors applications.
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
- All Electrical Machinery
- Refrigeration control
