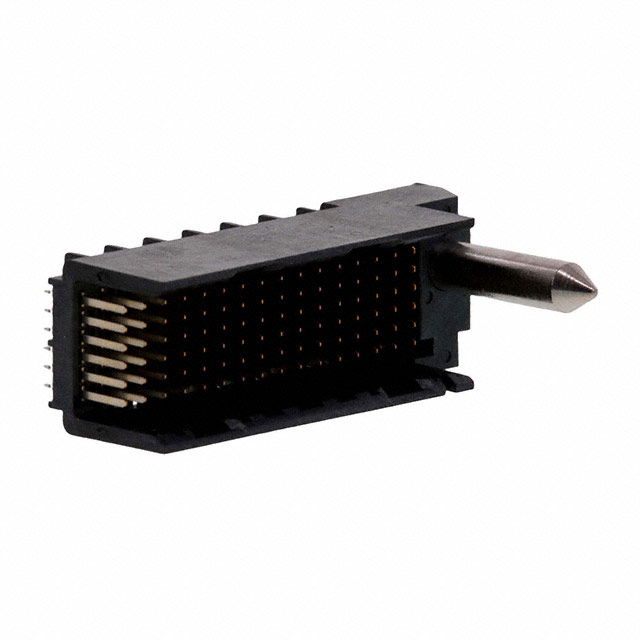

2057737-1

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Specialized

Min Operating Temperature :

-67°C

Factory Lead Time :

19 Weeks

Number of Ground Positions :

32

Lifecycle Status :

ACTIVE (Last Updated: 3 days ago)

Contact Finish :

Gold

Contact Current Rating :

750mA

Underplate Material :

Nickel

Differential Signaling :

yes

Make First / Break Last :

No

Packaging :

Tube

Operating Supply Voltage :

30V

Width :

12.7mm

Termination :

Solder

Pitch :

1.905mm

Max Current Rating :

750mA

Length - Tail :

1.4mm

PCB Mounting Orientation :

Vertical

Material Flammability Rating :

UL94 V-0

Max Operating Temperature :

185°C

Connector Type :

Header, Male Pins

Differential Pairs per Column :

2

Contact Plating :

Gold, Tin

Data Rate :

25 Gbps

Series :

Impact

Length :

36.90112mm

Connector Style :

Impact, Guide Left

Contact Finish Thickness :

30.0μin 0.76μm

Plating Thickness :

760 nm

Number of Contacts :

96

Current Rating :

750mA

Shrouding :

Partially Shrouded

Mating Alignment :

With

Housing Color :

Black

ELV :

Compliant

Circuit Application :

Signal

Color :

Black

Published :

2011

Operating Temperature :

-55°C~ 85°C

RoHS Status :

RoHS Compliant

Stackable :

No

Number of Pairs :

32

Flammability Rating :

UL94 V-0

Height :

11.95mm

Row Spacing :

1.3462 mm

Mounting Type :

Through Hole

PCB Thickness :

990.6μm

Hole Diameter :

381 µm

Number of Rows :

6

Number of Positions Loaded :

All

Sealable :

No

Number of Signal Positions :

64

Number of Positions :

96

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Housing Material :

Polymer

Number of Columns :

16

Orientation :

Vertical
