205720-9
Or copy the link below:
- Mfr.Part #
- 205720-9
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT 104POS PNL MNT
- Stock
- 193
- In Stock ：
- 193
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Specialized
- Width :
- 31.75mm
- Shielding :
- Unshielded
- Packaging :
- Bulk
- Mount :
- Panel
- Option :
- GENERAL PURPOSE
- Total Number of Contacts :
- 104
- Material Flammability Rating :
- UL94 V-0
- Flammability Rating :
- UL94 V-0
- Feature :
- Mating Guide
- Contact Finish Thickness :
- Flash
- IEC Conformance :
- No
- Circuit Application :
- Signal
- Length :
- 74.8mm
- Sealable :
- No
- Published :
- 2008
- MIL Conformance :
- No
- Wire/Cable Gauge :
- 24 AWG
- ELV :
- Compliant
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Lifecycle Status :
- ACTIVE (Last Updated: 3 days ago)
- Factory Lead Time :
- 7 Weeks
- Color :
- Black
- DIN Conformance :
- No
- Orientation :
- Straight
- Lead Free :
- Lead Free
- Empty Shell :
- No
- Height :
- 30.38mm
- Filter Feature :
- No
- Series :
- M
- Contact Material :
- Brass
- Number of Positions Loaded :
- All
- Shell Material :
- Stainless Steel
- RoHS Status :
- RoHS Compliant
- Contact Retention :
- With
- Pitch :
- 0.150 3.81mm
- Connector Type :
- Receptacle, Female Sockets
- Mixed Contacts :
- No
- Number of Rows :
- 9
- Operating Temperature :
- -55°C~150°C
- Contact Finish :
- Gold
- Termination :
- Wire Wrap
- Mounting Type :
- Panel Mount
- Number of Positions :
- 104
- Housing Material :
- Phenolic
- Datasheets
- 205720-9
.jpg)

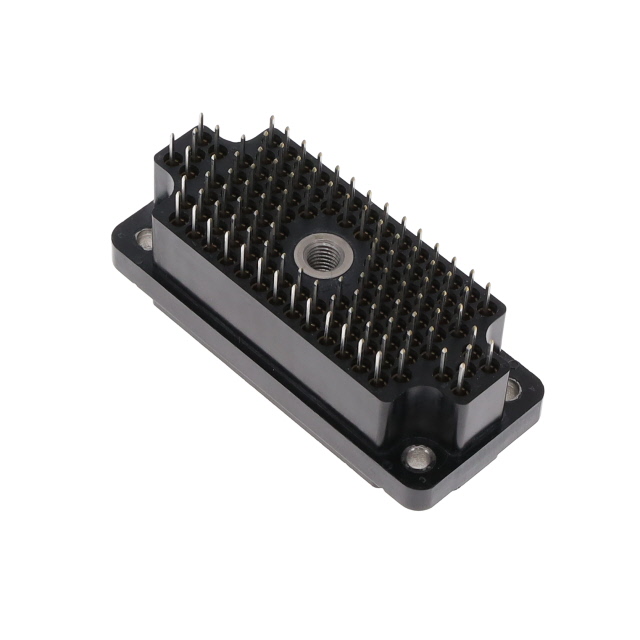

M Series Receptacle, Female Sockets Wire Wrap Gold Black Flash 104 Positions Pitch: 0.150 3.81mm -55°C~150°C Bulk Panel Mount
205720-9 Overview
The product comes in a package of Receptacle, Female Sockets.Panel Mount is the type of mounting for the device.To package the product, a Bulk case is used.The product is a member of the M Series.It is more powerful in many ways due to its Mating Guide feature.It is mounted by Panel.It operates at an operating temperature of -55°C~150°C.
205720-9 Features
M series
205720-9 Applications
There are a lot of TE Connectivity AMP Connectors
205720-9 Backplane Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
