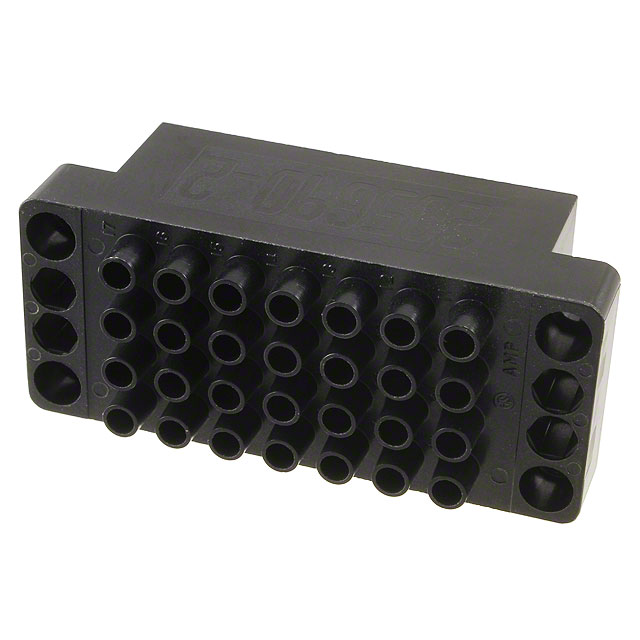

205690-2
Or copy the link below:
- Mfr.Part #
- 205690-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT HSG 28POS BLK PNL MNT
- Stock
- 486
- In Stock ：
- 486
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Backplane Connector Housings
- Connector Type :
- Housing for Female Sockets
- Published :
- 1997
- Color :
- Black
- Sealable :
- No
- Number of Positions :
- 28 (Power)
- Mounting Type :
- Panel Mount
- IEC Conformance :
- No
- Width :
- 28.18892mm
- Mating Information :
- 205689-2
- Pbfree Code :
- yes
- ELV :
- Compliant
- Note :
- Contacts Not Included
- Row Spacing :
- 6.35 mm
- Depth :
- 28.45mm
- Orientation :
- Straight
- Factory Lead Time :
- 21 Weeks
- Option :
- GENERAL PURPOSE
- Max Operating Temperature :
- 150°C
- Flammability Rating :
- UL94 V-0
- RoHS Status :
- RoHS Compliant
- Series :
- M
- Pitch :
- 6.35mm
- MIL Conformance :
- No
- Total Number of Contacts :
- 28
- Voltage - Rated AC :
- 1.8kV
- Number of Terminations :
- 28
- Max Voltage Rating (AC) :
- 1.8kV
- Lead Free :
- Lead Free
- Lifecycle Status :
- ACTIVE (Last Updated: 5 months ago)
- Number of Rows :
- 4
- Min Operating Temperature :
- -55°C
- Number of Ports :
- 1
- Packaging :
- Bulk
- Length :
- 28.45mm
- Housing Material :
- Phenolic
- DIN Conformance :
- No
- Connector Usage :
- Receptacle
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Feature :
- JACKSCREW
- Mount :
- Panel
- Empty Shell :
- yes
- Height :
- 65.913mm
- Mixed Contacts :
- No
- Filter Feature :
- No
- Datasheets
- 205690-2
