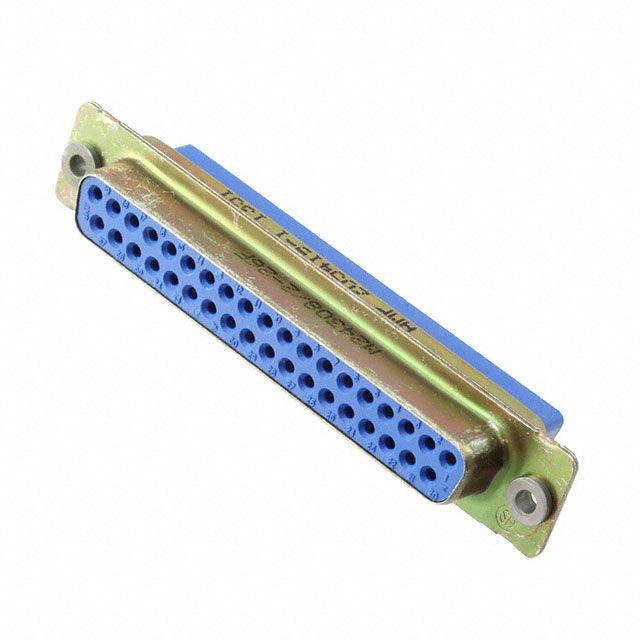

205419-1

Manufacturer :

TE Connectivity Aerospace Defense and Marine

Product Category :

D-Sub, D-Shaped Connector Housings

Shell Size, Connector Layout :

4 DC C

Length :

69.32mm

Mixed Contacts :

No

Gender :

Receptacle

Contact Design :

PREASSEM CONN

HTS Code :

8536.69.40.30

Series :

Military, MIL-DTL-24308, AMPLIMITE 109

RoHS Status :

Non-RoHS Compliant

Empty Shell :

yes

Reliability :

COMMERCIAL

Housing Material :

Steel

Shell Material, Finish :

Steel, Cadmium Plated

Sealable :

No

MIL Conformance :

yes

ECCN Code :

EAR99

Reference Standard :

UL, CSA

Dielectric Material :

Polyester, Glass Filled

Number of Rows :

2

Factory Lead Time :

13 Weeks

Mounting Option 1 :

HOLE .099-.111

IEC Conformance :

No

Flange Feature :

Housing/Shell (Unthreaded)

Connector Style :

D-Sub

Lifecycle Status :

ACTIVE (Last Updated: 1 week ago)

Number of Positions :

37

Contact Style :

Crimp

Mounting Type :

Free Hanging (In-Line)

Packaging :

Bulk

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Filter Feature :

No

Color :

Blue

Hole Diameter :

2.26 mm

Mounting Option 2 :

LOCKING

Published :

1997

DIN Conformance :

No

ELV :

Non-Compliant

Orientation :

Straight

Body Breadth :

0.494 inch

Option :

GENERAL PURPOSE

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Contact Type :

Signal

Current Rating :

7.5A

Connector Type :

Receptacle for Female Contacts

Depth :

16.36mm

Total Number of Contacts :

37

Operating Temperature (Min) :

-55°C

Note :

Contacts Not Included

Plating :

Cadmium
