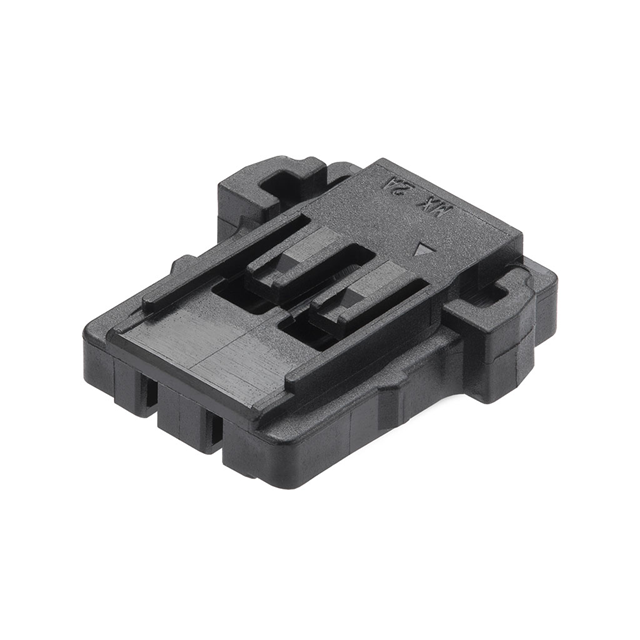

2053410202

Manufacturer :

Molex

Product Category :

Rectangular Connector Housings

Current Rating (Max) :

6.5/Contact(A)

Contact Material :

-

Mounting :

Cable Mount

Product Height (mm) :

9.1(mm)

Voltage Rating :

-

Number of Contacts :

2

Minimum Operating Temperature :

- 40 C

Maximum Operating Temperature :

+ 105 C

Mounting Style :

Cable Mount / Free Hanging

Note :

Contacts Not Included

Product Length :

8.55 mm

Package :

Bag

Base/Housing Material :

Polyamide

Wire Size :

26 to 20 AWG

Contact Gender :

Socket (Female)

Fastening Type :

Friction Lock

Pitch :

2 mm

For Use With :

Molex Pico-Lock 205342 Series Crimp Contacts

Base Product Number :

205341

Housing Material :

Polyamide (PA)

Mounting Angle :

Straight

Wire Gauge :

20-26(AWG)

Packaging :

Bulk

Contact Type :

-

Contact Termination :

Crimp

Panel Mount :

No

Operating Temperature :

-40 to 105 °C

Number of Positions :

2 Position

Mounting Type :

Free Hanging (In-Line)

Current Rating :

-

Product :

Wire Housings

Features :

-

Product Depth (mm) :

2.54(mm)

Product Status :

Active

IP Rating :

-

Color :

Black

Termination Style :

Crimp

Series :

205341

Type :

Receptacle Housing

Gender :

Receptacle

Housing Color :

Black

RoHS :

Details

Body Orientation :

RIGHT ANGLE

Tradename :

Pico-Lock

Flammability Rating :

UL 94 V-0

Number of Contact Rows :

1

Operating Temp Range :

-40C to 105C

Number of Rows :

1 Row

Housing Gender :

FEMALE

Row Spacing :

-

Voltage Rating Max :

250VDC/250VAC

Connector Type :

Receptacle

Product Length (mm) :

8.55(mm)

Pitch (mm) :

2(mm)
