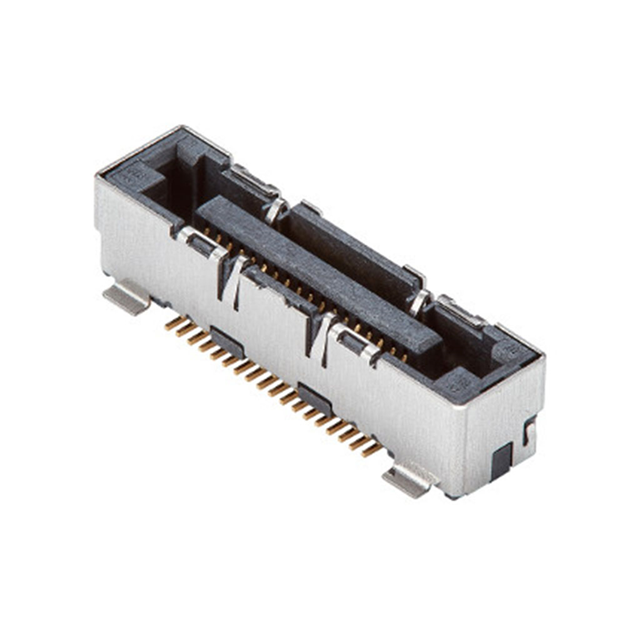

2051960360

Manufacturer :

Molex

Product Category :

Arrays, Edge Type, Mezzanine (Board to Board)

Reach Compliance Code :

Compliant

Gender :

FEMALE

Contact Location :

Dual Contact

Base Product Number :

205196

Contact Plating :

Gold

Housing Color :

Black

Connector Type :

Receptacle, Center Strip Contacts

Termination Style :

SMD/SMT

Current Rating :

500 mA

Pitch :

0.5 mm

Mated Stacking Heights :

7.1mm

Mounting Type :

Surface Mount

Height Above Board :

0.154 (3.90mm)

Minimum Operating Temperature :

- 20 C

Accessory Type :

-

Contact Material :

Phosphor Bronze

Features :

Solder Retention

Housing Material :

Polyester

Packaging :

Cut Tape

Number of Rows :

2

Series :

205196

Flammability Rating :

UL 94 V-0

Package :

Tape and Reel (TR);Cut Tape (CT);Digi-Reel®;

Contact Finish :

Gold

Contact Finish Thickness :

4.00µin (0.100µm)

Number of Positions :

36 Position

Product Status :

Active

Maximum Operating Temperature :

+ 85 C

Mounting Angle :

Vertical

RoHS :

Details

Voltage Rating :

50 V

Tradename :

Easy-On FV2R

Product :

Receptacles
