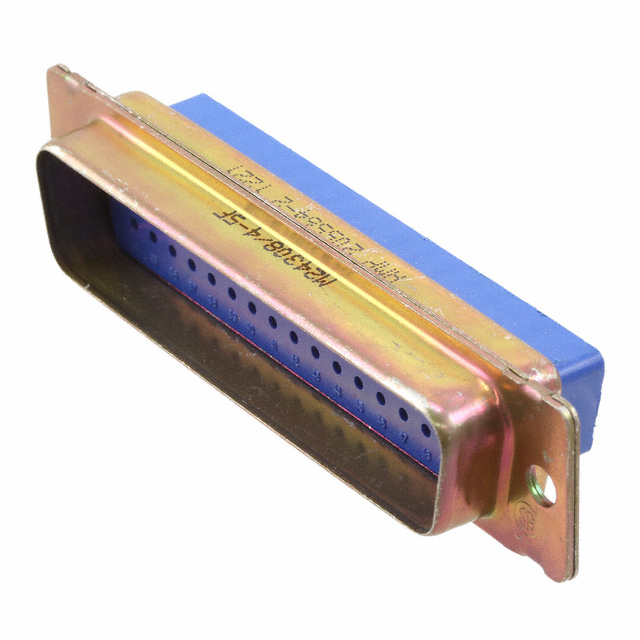

205170-1

Manufacturer :

TE Connectivity Aerospace Defense and Marine

Product Category :

D-Sub, D-Shaped Connector Housings

Current Rating :

7.5A

Plating :

Cadmium

Orientation :

Straight

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Number of Conductors :

ONE

Dielectric Material :

Polyester, Glass Filled

Sealable :

No

Shell Size, Connector Layout :

5 DD D

Empty Shell :

No

Mount :

Panel

Lead Free :

Contains Lead

Flange Feature :

Housing/Shell (Unthreaded)

Operating Temperature :

-50°C~125°C

Number of Rows :

3

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Insulation Diameter-Min :

0.068 inch

Connector Style :

D-Sub

Mixed Contacts :

No

Mounting Type :

Free Hanging (In-Line)

Factory Lead Time :

4 Weeks

Contact Type :

Signal

Length :

66.93mm

Reference Standard :

UL, CSA

Published :

2007

Note :

Contacts Not Included

Shell Material, Finish :

Steel, Cadmium Plated

Hole Diameter :

3.048 mm

Package / Case :

Metal

RoHS Status :

Non-RoHS Compliant

Housing Material :

Steel

ELV :

Non-Compliant

Packaging :

Bulk

Total Number of Contacts :

50

Option :

GENERAL PURPOSE

Contact Style :

Crimp

Depth :

16.35mm

Filter Feature :

No

Series :

Military, MIL-DTL-24308, AMPLIMITE 109

Connector Type :

Plug for Male Contacts

Number of Positions :

50

Lifecycle Status :

ACTIVE (Last Updated: 3 days ago)

Color :

Blue

Gender :

Male
