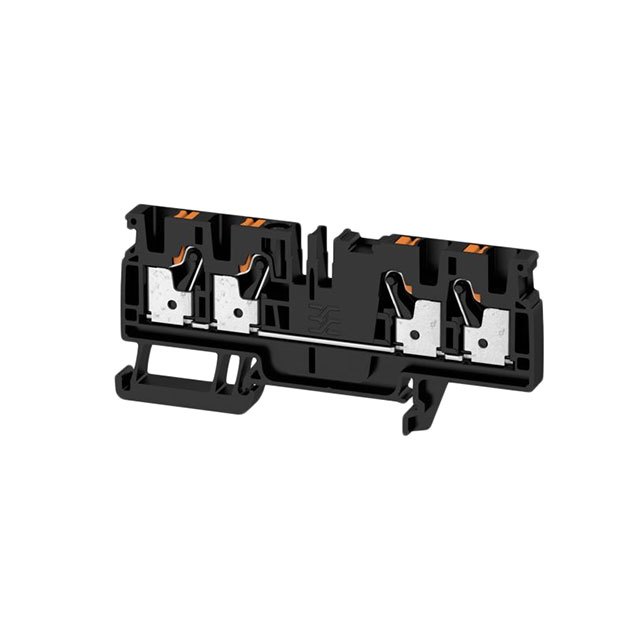

2051660000

Manufacturer :

Weidmuller

Product Category :

Din Rail, Channel

Subcategory :

Terminal Blocks

Nominal current :

32A

Product Type :

DIN Rail Terminal Blocks

Nominal current - rounded value :

32A

Cross section (inflexible) (max.) :

4mm²

Color :

Black

Nominal voltage (details) :

800V

Type :

A4C 4 BK

Length :

39.5mm

Width :

6.1mm

Connectable conductor cross section fine-strand with cable end sleeve :

0.5 - 4

Cross section (flexible) (max.) :

4mm²

Clamp width :

6.1mm

Stripping length (max.) :

12mm

Nominal current (details) :

32A

Connectable conductor cross section multi-wired :

0.5 - 4

Nominal voltage :

800V

AWG (min.) :

26

Cross section (inflexible) (min.) :

0.5mm²

Height :

87.5mm

Cross section (flexible) (min.) :

0.5mm²

Inflammability class of insulation material according to with UL94 :

V0

Connection :

Pull spring

AWG max. :

12

Manufacturer part # :

2051660000

Depth :

39.5

Connectable conductor cross section solid-core :

0.5 - 4

Connections :

4

Connectable conductor cross section fine-strand without cable end sleeve :

0.5 - 4

Content :

50pc(s)

RoHS-compliant :

yes

Rated current In :

32
