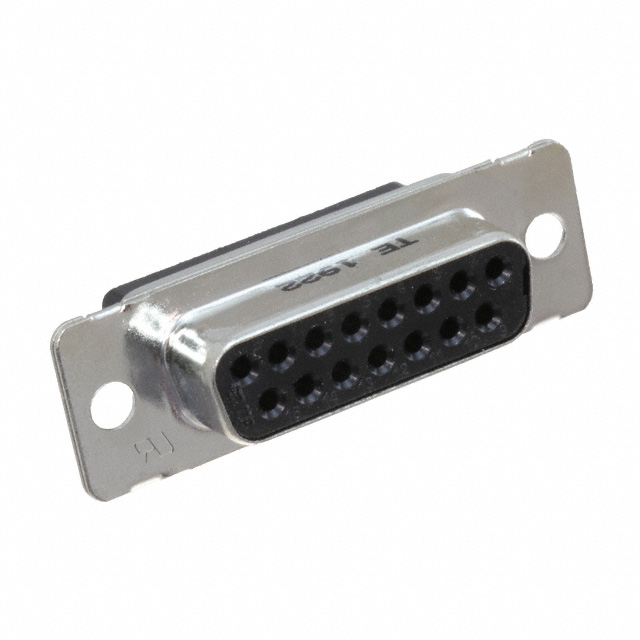

205163-5
Or copy the link below:
- Mfr.Part #
- 205163-5
- Manufacturer
- TE Connectivity Aerospace Defense and Marine
- Package / Case
- Datasheet
- Download
- Description
- CONN D-SUB HOUSING RCPT 15POS
- Stock
- 2,542
- In Stock ：
- 2,542
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity Aerospace Defense and Marine
- Product Category :
- D-Sub, D-Shaped Connector Housings
- Shell Material :
- Steel
- Packaging :
- Bulk
- Hole Diameter :
- 3.048 mm
- MIL Conformance :
- No
- Lifecycle Status :
- ACTIVE (Last Updated: 2 days ago)
- ELV :
- Compliant
- Orientation :
- Straight
- Sealable :
- No
- Factory Lead Time :
- 7 Weeks
- Pbfree Code :
- yes
- Contact Style :
- Crimp
- Series :
- AMPLIMITE 109
- Total Number of Contacts :
- 15
- Depth :
- 16.45mm
- Contact Type :
- Signal
- Shell Material, Finish :
- Steel, Tin Plated
- Shell Finish Thickness :
- 400μin 10.16μm
- Mixed Contacts :
- No
- Number of Ports :
- 1
- Flange Feature :
- Housing/Shell (Unthreaded)
- Dielectric Material :
- Polyester
- Mounting Type :
- Free Hanging (In-Line)
- Connector Style :
- D-Sub
- Number of Rows :
- 2
- Filter Feature :
- No
- Empty Shell :
- No
- Lead Free :
- Lead Free
- Mount :
- Cable, Free Hanging
- Color :
- Blue
- Option :
- GENERAL PURPOSE
- Length :
- 39.14mm
- Published :
- 2007
- Number of Positions :
- 15
- Note :
- Contacts Not Included
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Operating Temperature :
- -50°C~125°C
- Current Rating :
- 7.5A
- RoHS Status :
- RoHS Compliant
- Gender :
- FEMALE
- Shell Size, Connector Layout :
- 2 DA A
- DIN Conformance :
- No
- Plating :
- Copper, Tin
- Termination Type :
- IDC
- Connector Type :
- Receptacle for Female Contacts
- IEC Conformance :
- No
- Datasheets
- 205163-5
