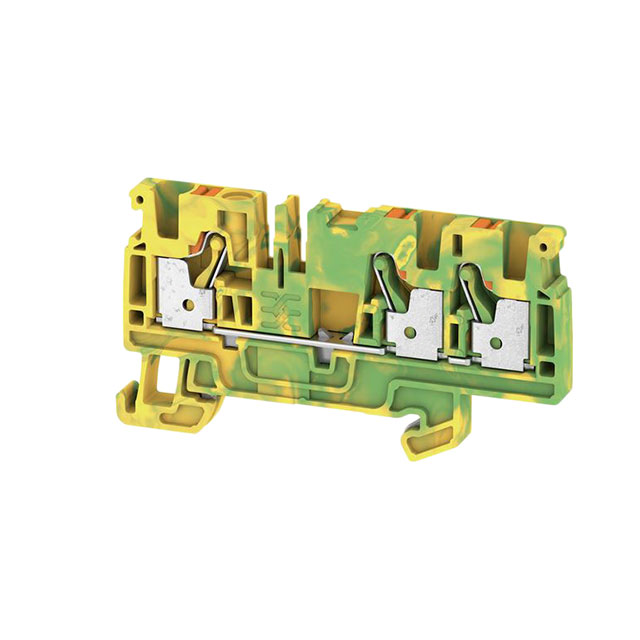

2051410000

Manufacturer :

Weidmuller

Product Category :

Din Rail, Channel

Clamp width :

6.10mm

Series :

A3C

Height :

74mm

Stripping length (max.) :

12mm

Nominal voltage :

800V

Rated Current :

-

Cross section (inflexible) (max.) :

4mm²

Factory Lead Time :

12 Weeks, 1 Day

Type :

A3C 4 PE

Terminal and Terminal Block Type :

MODULAR TERMINAL BLOCK

Number of Positions :

3 Position

Packaging :

Bulk

Product Type :

DIN Rail Terminal Blocks

Width :

6.10mm

Product Category :

DIN Rail Terminal Blocks

AWG (min.) :

26

Connectable conductor cross section fine-strand without cable end sleeve :

0.5 - 4

Rated Voltage :

800V

Nominal current - rounded value :

32A

Depth :

39.5

Connectable conductor cross section solid-core :

0.5 - 4

Brand :

Weidmuller

Pins per row :

3

Connection :

Pull spring

Length :

39.50mm

Nominal current :

32A

Content :

50pc(s)

Inflammability class of insulation material according to with UL94 :

V0

Cross section (flexible) (max.) :

4mm²

RoHS-compliant :

yes

Voltage Rating :

800 V

Connection Method :

Push-In

Cross section (inflexible) (min.) :

0.5mm²

Subcategory :

Terminal Blocks

No. of rows :

1

Manufacturer part # :

2051410000

AWG max. :

12

Connectable conductor cross section fine-strand with cable end sleeve :

0.5 - 4

Cross section (flexible) (min.) :

0.5mm²

Mounting Style :

DIN Rail

Reach Compliance Code :

Compliant

Connectable conductor cross section multi-wired :

0.5 - 4

Maximum Operating Temperature :

+ 130 C

Color :

White

Industrial packaging :

yes

RoHS :

Details

Housing Material :

Thermoplastic (TP)

Minimum Operating Temperature :

- 60 C

Flammability Rating :

UL 94 V-0
