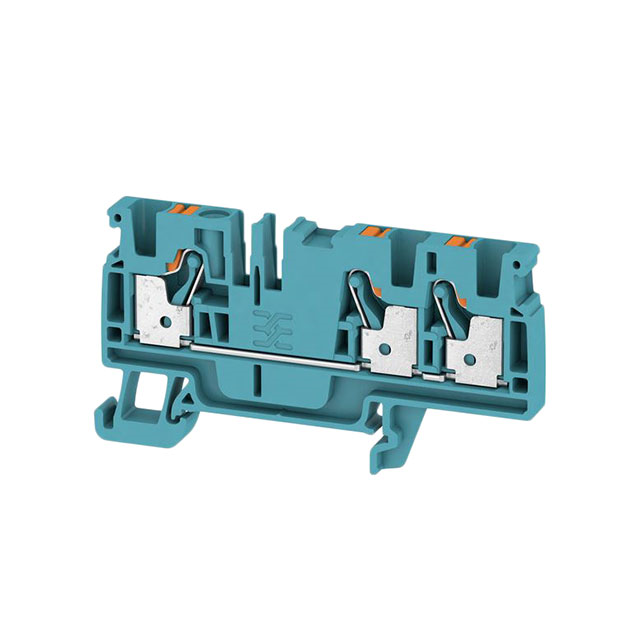

2051280000

Manufacturer :

Weidmuller

Product Category :

Din Rail, Channel

Manufacturer :

Weidmuller

Subcategory :

Terminal Blocks

Connection :

Pull spring

Depth :

39.5

Type :

A3C 4 BL

Cross section (inflexible) (max.) :

4mm²

Cross section (flexible) (min.) :

0.5mm²

Nominal voltage :

800V

Current Rating :

32 A

Connection Method :

Push-In

Rated current In :

32

Connectable conductor cross section fine-strand with cable end sleeve :

0.5 - 4

Manufacturer part # :

2051280000

Connectable conductor cross section solid-core :

0.5 - 4

RoHS :

Details

Series :

A3C

Pins per row :

3

Color :

Blue

Voltage Rating :

800 V

Cross section (flexible) (max.) :

4mm²

Inflammability class of insulation material according to with UL94 :

V0

Length :

39.50mm

AWG (min.) :

26

Stripping length (max.) :

12mm

Maximum Operating Temperature :

+ 130 C

Housing Material :

Thermoplastic (TP)

Height :

74mm

Width :

6.10mm

Product Type :

DIN Rail Terminal Blocks

Nominal current :

32A

RoHS-compliant :

yes

Minimum Operating Temperature :

- 60 C

Cross section (inflexible) (min.) :

0.5mm²

Rated Current :

32A

Nominal current - rounded value :

32A

Clamp width :

6.10mm

Connectable conductor cross section fine-strand without cable end sleeve :

0.5 - 4

Number of Positions :

3 Position

No. of rows :

1

Packaging :

Bulk

Industrial packaging :

yes

Product Category :

DIN Rail Terminal Blocks

Brand :

Weidmuller

Rated Voltage :

800V

Flammability Rating :

UL 94 V-0

Connectable conductor cross section multi-wired :

0.5 - 4

AWG max. :

10

Mounting Style :

DIN Rail

Content :

50pc(s)
