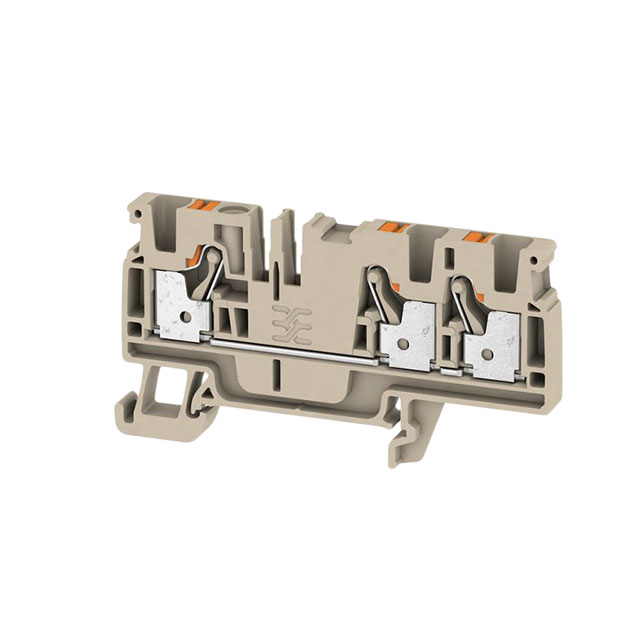

2051240000

Manufacturer :

Weidmuller

Product Category :

Din Rail, Channel

Terminal and Terminal Block Type :

MODULAR TERMINAL BLOCK

Clamp width :

6.10mm

Connection Method :

Push-In

RoHS-compliant :

yes

Width :

6.10mm

Factory Lead Time :

12 Weeks, 1 Day

Connectable conductor cross section fine-strand without cable end sleeve :

0.5 - 4

Nominal voltage :

800V

RoHS :

Details

Cross section (flexible) (max.) :

4mm²

Nominal current :

32A

Cross section (inflexible) (min.) :

0.5mm²

Flammability Rating :

UL 94 V-0

Type :

A3C 4

Brand :

Weidmuller

Housing Material :

Thermoplastic (TP)

Current Rating :

32 A

Voltage Rating :

800 V

Product Category :

DIN Rail Terminal Blocks

Subcategory :

Terminal Blocks

Reach Compliance Code :

Compliant

Stripping length (max.) :

12mm

Pins per row :

3

Color :

Beige

Rated current In :

32

Minimum Operating Temperature :

- 60 C

Inflammability class of insulation material according to with UL94 :

V0

Height :

74mm

Maximum Operating Temperature :

+ 130 C

Length :

39.50mm

Industrial packaging :

yes

Cross section (inflexible) (max.) :

4mm²

Number of Positions :

3 Position

Cross section (flexible) (min.) :

0.5mm²

Content :

50pc(s)

Connectable conductor cross section solid-core :

0.5 - 4

No. of rows :

1

Rated Voltage :

800V

Connectable conductor cross section fine-strand with cable end sleeve :

0.5 - 4

Nominal current - rounded value :

32A

Connectable conductor cross section multi-wired :

0.5 - 4

Series :

A3C

Manufacturer part # :

2051240000

AWG max. :

12

Rated Current :

32A

Connection :

Pull spring

Product Type :

DIN Rail Terminal Blocks

Mounting Style :

DIN Rail

Packaging :

Bulk

Depth :

39.5

AWG (min.) :

26
