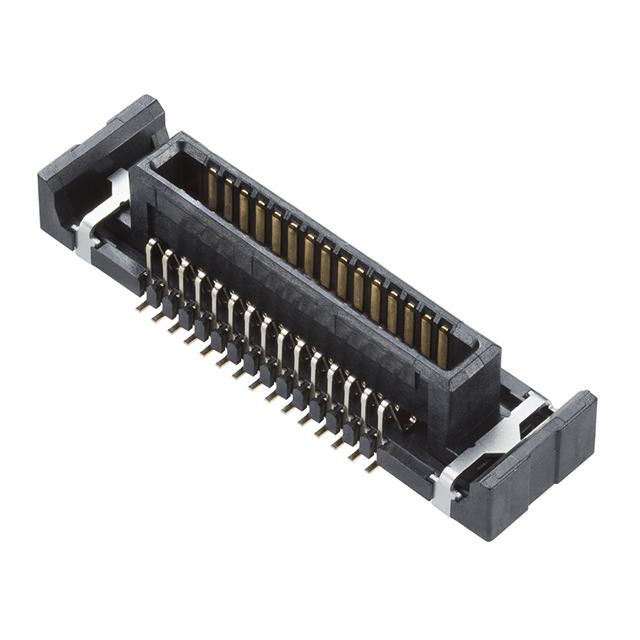

2049280401

Manufacturer :

Molex

Product Category :

Arrays, Edge Type, Mezzanine (Board to Board)

Voltage Rating :

40 V

Mounting :

Surface Mount

Mounting Style :

SMD/SMT

Current Rating :

300 mA

Base Product Number :

204928

Contact Finish :

Gold

Contact Finish Thickness :

-

Connector Type :

Plug, Outer Shroud Contacts

Minimum Operating Temperature :

- 40 C

Number of Positions :

40 Position

Termination Method :

Solder

Housing Color :

Black

Mounting Angle :

Vertical

Product Length :

13 mm

Product Status :

Active

Gender :

PLUG

Housing Material :

Liquid Crystal Polymer (LCP)

Body Orientation :

Straight

Stack Height :

3 mm

Series :

204928

Contact Material :

Copper

Packaging :

Cut Tape

Operating Temperature :

-40 to 125 °C

Number of Rows :

2 Row

Number of Contacts :

40

RoHS :

Details

Base/Housing Material :

LCP (Liquid Crystal Polymer)

Tradename :

SlimStack

Height Above Board :

0.093 (2.35mm)

Termination Style :

Solder

Contact Plating :

Gold

Features :

Pick and Place, Solder Retention

Maximum Operating Temperature :

+ 125 C

Product :

Headers, PCB

Mated Stacking Heights :

3mm

Package :

Tape and Reel (TR);Cut Tape (CT);Digi-Reel®;

Mounting Type :

Surface Mount

Pitch :

0.4 mm
