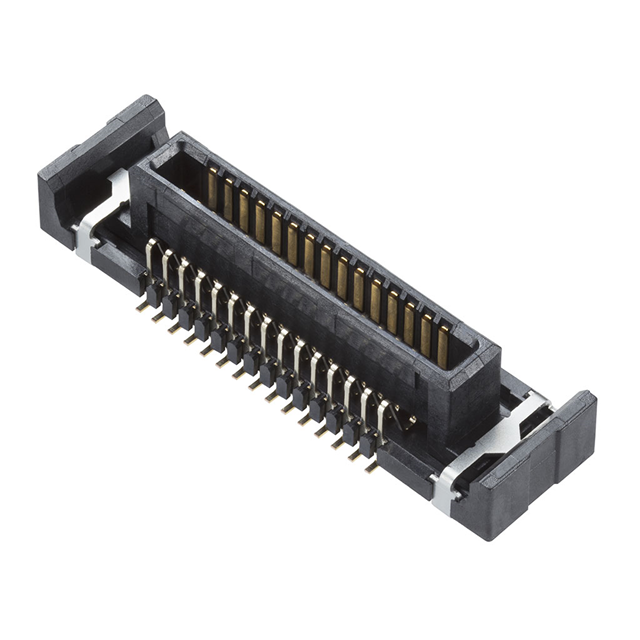

2049280301

Manufacturer :

Molex

Product Category :

Arrays, Edge Type, Mezzanine (Board to Board)

Height Above Board :

0.093 (2.35mm)

Contact Material :

Copper

Mounting :

Surface Mount

Termination Method :

Solder

Termination Style :

Solder

Number of Rows :

2 Row

Number of Positions :

30 Position

Pitch :

0.4 mm

Connector Type :

Plug, Outer Shroud Contacts

Housing Material :

Liquid Crystal Polymer (LCP)

Gender :

PLUG

Operating Temperature :

-40 to 125 °C

Product Length :

11 mm

Product Status :

Active

Maximum Operating Temperature :

+ 125 C

Body Orientation :

Straight

Housing Color :

Black

Mated Stacking Heights :

3mm

Series :

204928

Current Rating :

300 mA

Minimum Operating Temperature :

- 40 C

RoHS :

Details

Tradename :

SlimStack

Mounting Angle :

Vertical

Number of Contacts :

30

Base Product Number :

204928

Packaging :

Cut Tape

Mounting Type :

Surface Mount

Features :

Pick and Place, Solder Retention

Contact Finish :

Gold

Contact Finish Thickness :

-

Voltage Rating :

40 V

Product :

Headers, PCB

Package :

Tape and Reel (TR);Cut Tape (CT);Digi-Reel®;

Contact Plating :

Gold

Base/Housing Material :

LCP (Liquid Crystal Polymer)

Stack Height :

3 mm
