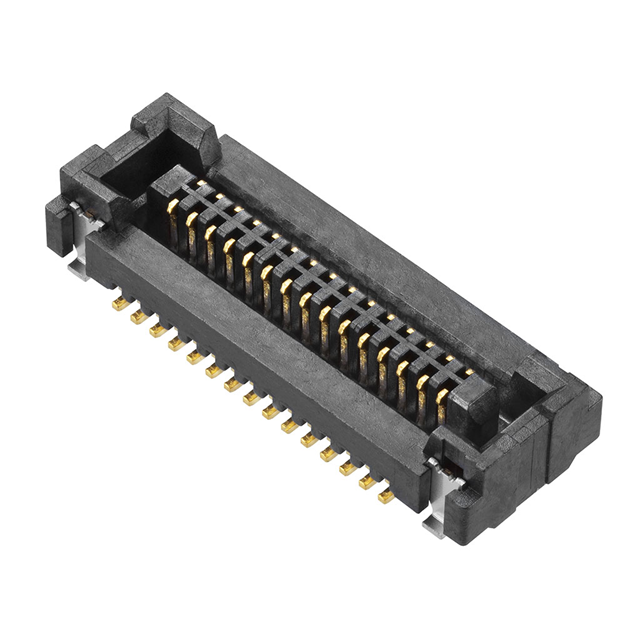

2049270401

Manufacturer :

Molex

Product Category :

Arrays, Edge Type, Mezzanine (Board to Board)

Product Status :

Active

Features :

Pick and Place, Solder Retention

Housing Material :

Liquid Crystal Polymer (LCP)

Termination Style :

Solder

Number of Contacts :

40

Package :

Tape and Reel (TR);Cut Tape (CT);Digi-Reel®;

Stack Height :

3 mm

Voltage Rating :

40 V

Height Above Board :

0.066 (1.68mm)

RoHS :

Details

Mounting :

Surface Mount

Current Rating :

300 mA

Base Product Number :

204927

Connector Type :

Receptacle, Center Strip Contacts

Contact Material :

Copper

Contact Finish Thickness :

-

Body Orientation :

Straight

Mounting Type :

Surface Mount

Pitch :

0.4 mm

Mated Stacking Heights :

3mm

Product Length :

10.81 mm

Base/Housing Material :

LCP (Liquid Crystal Polymer)

Series :

204927

Termination Method :

Solder

Packaging :

Cut Tape

Mounting Angle :

Vertical

Number of Rows :

2 Row

Minimum Operating Temperature :

- 40 C

Housing Color :

Black

Contact Plating :

Gold

Type :

Board-To-Board Connector

Number of Positions :

40 Position

Tradename :

SlimStack

Maximum Operating Temperature :

+ 125 C

Product :

Receptacles

Operating Temperature :

-40 to 125 °C

Gender :

RCP

Contact Finish :

Gold
