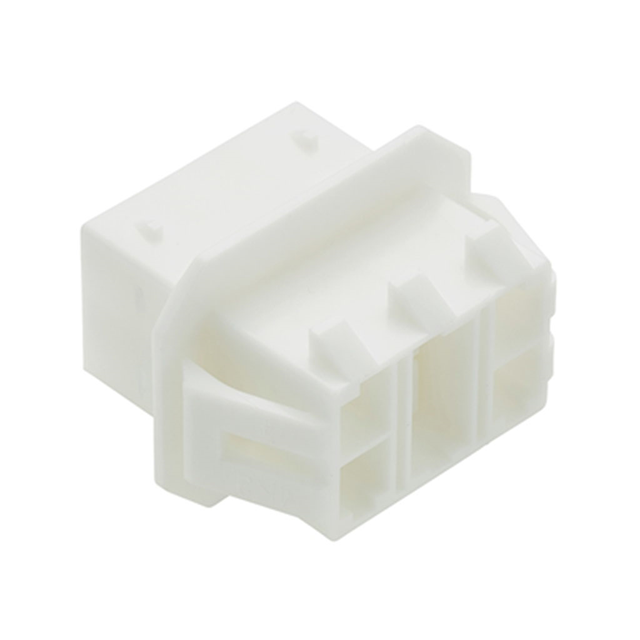

2041020609

Manufacturer :

Molex

Product Category :

Rectangular Connector Housings

Body Orientation :

Straight

Gender :

Receptacle

Product :

Wire Housings

Contact Type :

Male Pin

Product Depth (mm) :

8.2(mm)

Maximum Operating Temperature :

+ 110 C

Current Rating (Max) :

15/Contact(A)

Number of Rows :

2 Row

Connector Type :

Receptacle

Pitch :

8.5 mm

Minimum Operating Temperature :

- 40 C

Flammability Rating :

UL 94 V-0

Fastening Type :

Locking Ramp

Number of Positions :

6 Position

Housing Color :

Natural

Type :

Plug Housing

Number of Contact Rows :

2

Contact Gender :

Pin (Male)

Mounting Type :

Panel Mount, Snap-In

Series :

204102

Package :

Bag

Termination Style :

Crimp

Housing Gender :

Receptacle

Features :

Glow Wire Compliant

RoHS :

Details

Application :

Power, Wire-to-Wire

Product Height (mm) :

24(mm)

Wire Gauge :

14-24(AWG)

Row Spacing :

8 mm

Mounting Style :

Cable Mount / Free Hanging

Mounting Angle :

Straight

Base Product Number :

204102

For Use With :

Molex VersaBlade 35746 Series Socket and 35745, 35747 Series Pin Contacts

Voltage Rating Max :

300VDC/300VAC

Color :

Natural

Housing Material :

Polyethylene Terephthalate (PET) / Polycarbonate (PC)

Operating Temp Range :

-40C to 110C

Contact Material :

-

Contact Termination :

Crimp

Number of Contacts :

6(POS)

Packaging :

Bulk

Note :

Contacts Not Included

Product Status :

Active

Product Length (mm) :

17.8(mm)

Tradename :

VersaBlade

Panel Mount :

No
