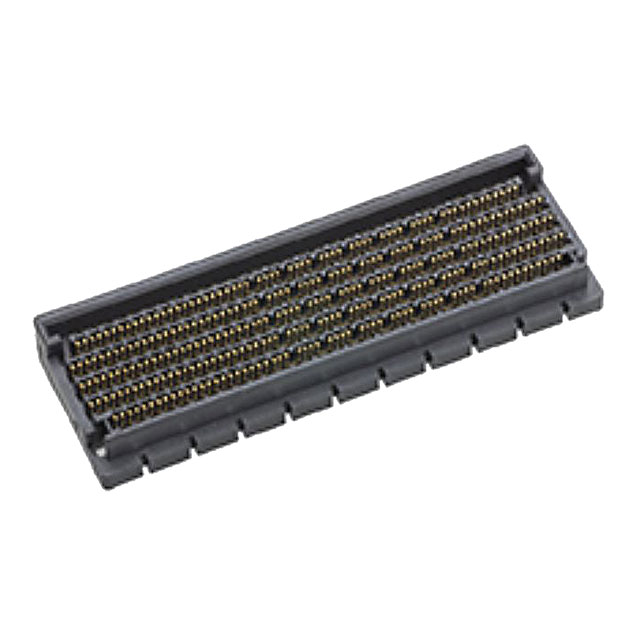

2034560003
Or copy the link below:
- Mfr.Part #
- 2034560003
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN SELF-MATE 699POS SMD GOLD
- Stock
- 294
- In Stock ：
- 294
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Arrays, Edge Type, Mezzanine (Board to Board)
- Contact Finish :
- Gold
- Packaging :
- Tape and Reel (TR)
- Total Number of Contacts :
- 699
- Mounting Type :
- Surface Mount
- Stack Height (Mating) :
- 8mm 11mm
- Number of Rows :
- 11
- DIN Conformance :
- No
- Number of Positions :
- 699
- Contact Finish Thickness :
- 30.0μin 0.76μm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Material :
- NOT SPECIFIED
- Mixed Contacts :
- No
- Connector Type :
- Self Mating, Non-Gendered
- Factory Lead Time :
- 18 Weeks
- Height Above Board :
- 0.301 7.65mm
- Feature :
- Pick and Place
- MIL Conformance :
- No
- Option :
- GENERAL PURPOSE
- RoHS Status :
- ROHS3 Compliant
- Mating Information :
- MULTIPLE MATING PARTS AVAILABLE
- IEC Conformance :
- No
- Series :
- Mirror Mezz 203456
- Filter Feature :
- No
- Contact Gender :
- Hermaphroditic
- Datasheets
- 2034560003
2034560003 Documents
Self Mating, Non-Gendered Tape & Reel (TR) 11 Rows Surface Mount 699 Positions Mirror Mezz 203456 Gold NOT SPECIFIED
2034560003 Overview
The product is packaged in Self Mating, Non-Gendered.It has been determined that a Tape & Reel (TR) case is necessary to package the product.This device is mounted in the Surface Mount position.There is a product in the Mirror Mezz 203456 Series.This can be ensured when the system is in operation by maintaining Pick and Place.
2034560003 Features
Mirror Mezz 203456 series
Package / Case: Tape & Reel (TR)
Mounting Type:Surface Mount
2034560003 Applications
There are a lot of Molex
2034560003 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
