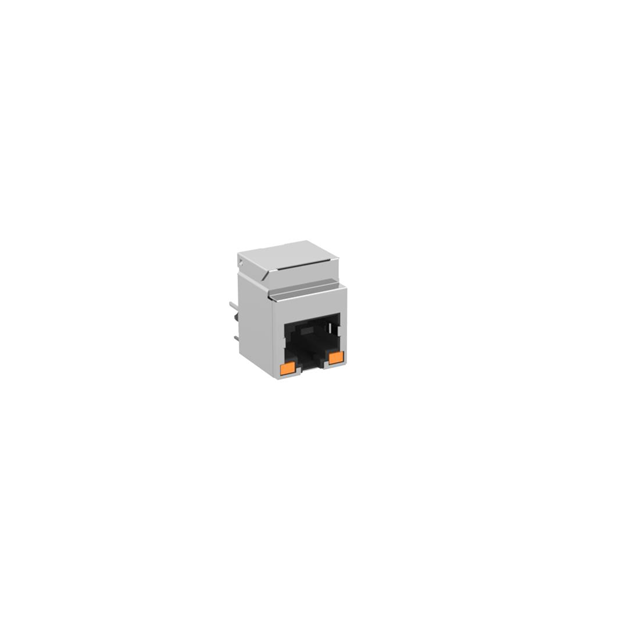

203346
Or copy the link below:
- Mfr.Part #
- 203346
- Manufacturer
- TE Connectivity
- Package / Case
- Datasheet
- Download
- Description
- CONN JACK 1PORT 1000 BASE-T PCB
- Stock
- 3,029
- In Stock ：
- 3,029
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity
- Product Category :
- Modular Connector Jacks With Magnetics
- Connector Type :
- TELECOM AND DATACOM CONNECTOR
- MIL Conformance :
- No
- Contact Gender :
- FEMALE
- Durability :
- 1000 Cycles
- UL Flammability Code :
- 94V-0
- Manufacturer :
- ERNI
- Body Breadth :
- 0.849 inch
- Additional Feature :
- PANEL MOUNTABLE
- Body Depth :
- 0.65 inch
- Body/Shell Style :
- JACK
- Mounting Type :
- BOARD
- Contact Material :
- Phosphor Bronze
- Option :
- GENERAL PURPOSE
- Board Mounting Option :
- LOCATING POSTS
- Subcategory :
- Telecom and Datacom Connectors
- Shell Finish :
- Nickel
- Mounting Style :
- Straight
- Empty Shell :
- No
- PCB Contact Pattern :
- STAGGERED
- Contact Style :
- TELCOM, MODULAR
- IEC Conformance :
- No
- Number of Ports :
- 1
- HTS Code :
- 8536.69.40.30
- Reference Standard :
- UL
- Total Number of Contacts :
- 8
- Termination Type :
- Solder
- Reach Compliance Code :
- Compliant
- ECCN Code :
- EAR99
- Reliability :
- COMMERCIAL
- DIN Conformance :
- No
- Mixed Contacts :
- No
- Terminal Pitch :
- 2.54 mm
- Filter Feature :
- yes
- Mounting Option 1 :
- LOCKING
- Pbfree Code :
- yes
- Plating Thickness :
- 30u inch
- Shell Material :
- COPPER ALLOY
- Terminal Length :
- 0.138 inch
- Insulator Color :
- Black
- Datasheets
- 203346
