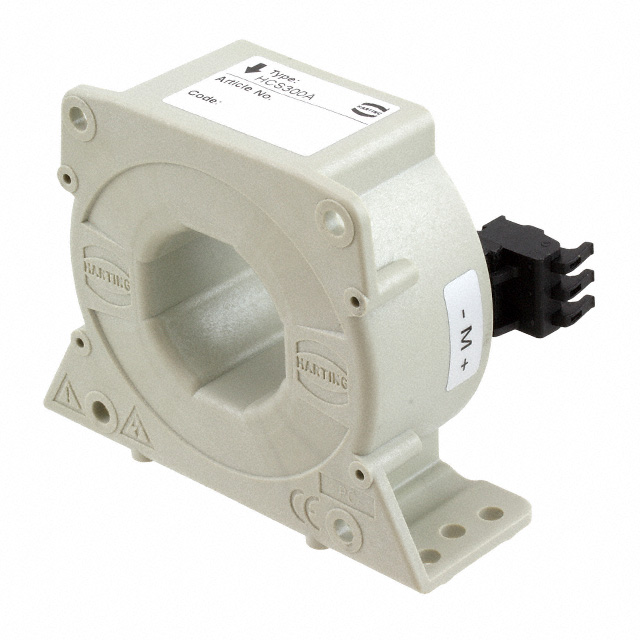

20310500101
Or copy the link below:
- Mfr.Part #
- 20310500101
- Manufacturer
- HARTING
- Package / Case
- Module, Single Pass Through
- Datasheet
- Download
- Description
- SENSOR CURRENT HALL 500A AC
- Stock
- 2
- In Stock ：
- 2
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- HARTING
- Product Category :
- Current Sensors
- Sensing Method :
- Hall Effect
- Polarization :
- Bidirectional
- Max Operating Temperature :
- 85°C
- Mount :
- Panel, Screw
- Height :
- 70mm
- Output :
- Ratiometric, Voltage
- For Measuring :
- AC/DC
- Min Supply Voltage (DC) :
- 15V
- Factory Lead Time :
- 10 Weeks
- REACH SVHC :
- No SVHC
- Linearity :
- ±0.1%
- Width :
- 31mm
- Polarity :
- Bidirectional
- Package / Case :
- Module, Single Pass Through
- Voltage - Supply :
- 15V~24V
- Max Supply Voltage (DC) :
- 24V
- Number of Channels :
- 1
- Max Supply Current :
- 24mA
- RoHS Status :
- ROHS3 Compliant
- Current - Sensing :
- 500A
- Frequency :
- 100kHz
- Length :
- 89mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Accuracy :
- ±0.6%
- Current - Supply (Max) :
- 24mA
- Mounting Type :
- Panel Mount
- Min Operating Temperature :
- -40°C
- Operating Supply Voltage :
- 24V
- Sensor Type :
- Hall Effect, Closed Loop
- Response Time :
- 1μs
- Packaging :
- Bulk
- Current Rating :
- 500A
- Operating Temperature :
- -40°C~85°C
- Weight :
- 349.000008g
- Datasheets
- 20310500101
Hall Effect, Closed Loop Sensor 1-Channel Bidirectional -40°C~85°C 15V~24V 100kHz 500A Accuracy-±0.6% Linearity-±0.1%
20310500101 Overview
For safety reasons, the current sensors are packaged in Module, Single Pass Through packages. In order to protect the devices from damage, these current sensors are packaged in the Bulk. These current sensors should supply no more than 24mA current. Current sensors should not supply more current than 24mA. In order for these current sensors to work, the temperature must not be lower than -40°C. Nevertheless, the maximum operating temperature for the current sensors should be set to 85°C. Current sensors have been designed for 500A current. During operation, the current sensors could supply 24V voltage. It is important that the voltage supplied by these sensors is not lower than 15V in a DC circuit. In the DC circuit, however, the voltage supplied by the current sensors should not exceed 24V.
20310500101 Features
Moisture Sensitivity Level: 1 (Unlimited)
Operating Temperature: -40°C~85°C
1 Channels
Mounting Type: Panel Mount
Sensor Type: Hall Effect, Closed Loop
Supply Voltage: 15V~24V
Frequency: 100kHz
Sensing Current: 500A
Module, Single Pass Through Package
20310500101 Applications
There are a lot of HARTING
20310500101 Current Sensors applications.
- Inverter and H-bridge current measurements
- Power factor correction
- Overcurrent protection
- DC and AC power monitoring
- Closed-L oop DC- and AC-Current Sensor Modules
- Leakage Current Sensors
- Industrial Monitoring and Control Systems
- Overcurrent Detection
- Frequency, Voltage, and Solar Inverters
- Electrical drives
