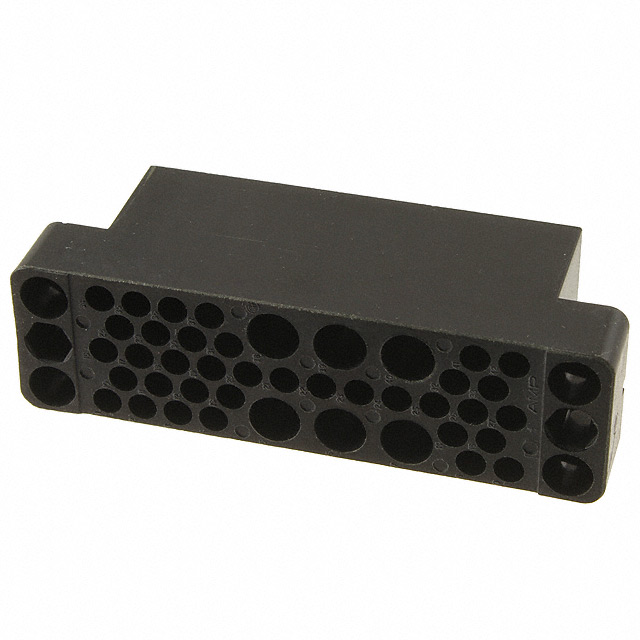

202516-1
Or copy the link below:
- Mfr.Part #
- 202516-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT HSG 42POS BLK PNL MNT
- Stock
- 145
- In Stock ：
- 145
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Backplane Connector Housings
- Width :
- 19.05mm
- Pbfree Code :
- yes
- Filter Feature :
- No
- MIL Conformance :
- No
- Empty Shell :
- No
- Packaging :
- Bulk
- Pitch :
- 2.54mm
- Mounting Type :
- Panel Mount
- Lead Free :
- Lead Free
- IEC Conformance :
- No
- Series :
- M
- Published :
- 1997
- UL Flammability Code :
- 94V-0
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Color :
- Black
- Number of Ports :
- 1
- Sealable :
- No
- Connector Type :
- Housing for Female Sockets
- RoHS Status :
- RoHS Compliant
- Factory Lead Time :
- 30 Weeks
- Depth :
- 23.24mm
- Mixed Contacts :
- yes
- Height :
- 65.8622mm
- Contact Plating :
- Gold
- Housing Material :
- Phenolic
- Mount :
- Panel
- Connector Usage :
- Receptacle
- Lifecycle Status :
- ACTIVE (Last Updated: 4 days ago)
- Total Number of Contacts :
- 42
- Min Operating Temperature :
- -55°C
- Max Operating Temperature :
- 150°C
- ELV :
- Compliant
- Number of Rows :
- 5
- Orientation :
- Straight
- Option :
- GENERAL PURPOSE
- Flammability Rating :
- UL94 V-0
- DIN Conformance :
- No
- Number of Terminations :
- 42
- Note :
- Contacts Not Included
- Length :
- 23.24mm
- Number of Positions :
- 42 (36 + 6 Power)
- Datasheets
- 202516-1
202516-1 datasheet pdf and Backplane Connectors - Housings product details from TE Connectivity AMP Connectors stock available at Xinshop
