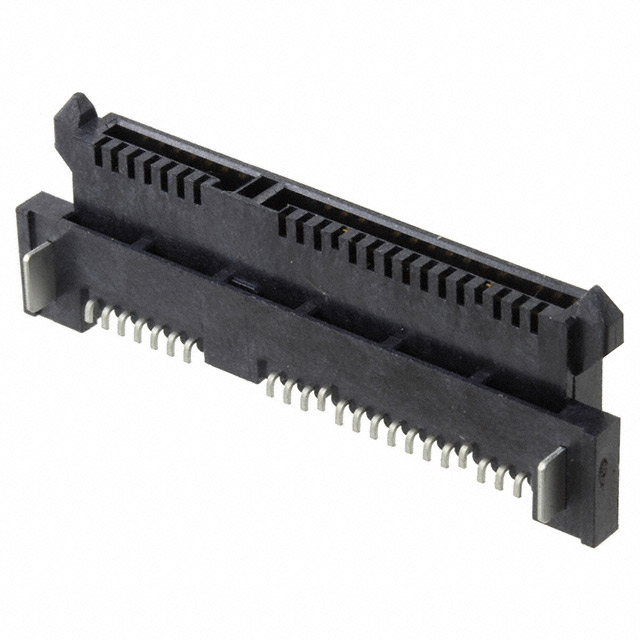

2023246-2

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Pluggable Connector Assemblies

Contact Plating :

Gold, Tin

Plating Thickness :

300 nm

Lifecycle Status :

ACTIVE (Last Updated: 3 days ago)

Min Operating Temperature :

-40°C

Circuit Application :

Power

UL Flammability Code :

94V-0

Filter Feature :

No

Connector Type :

SATA

Flammability Rating :

UL94 V-0

Max Current Rating :

1.5A

Mixed Contacts :

yes

Total Number of Contacts :

22

Connector Style :

Receptacle

Number of Positions :

22

Stackable :

No

MIL Conformance :

No

Mount :

Surface Mount

Contact Finish :

Gold

Gender :

FEMALE

PCB Thickness :

1.2mm

Option :

GENERAL PURPOSE

Empty Shell :

No

Orientation :

RIGHT ANGLE

RoHS Status :

RoHS Compliant

DIN Conformance :

No

Max Operating Temperature :

85°C

Contact Finish Thickness :

30.0μin 0.76μm

Factory Lead Time :

12 Weeks

Housing Material :

Thermoplastic

High Temperature Housing :

yes

PCB Mounting Orientation :

RIGHT ANGLE

Shell Material :

POLYETHYLENE

Pitch :

1.27mm

Number of Ports :

2

Published :

2010

Mounting Type :

Surface Mount, Right Angle

Housing Color :

Black

Feature :

Board Guide

Lead Length :

1.27mm

ELV :

Compliant

Packaging :

Tray

IEC Conformance :

No

Contact Current Rating :

1.5A

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Number of Rows :

1

Termination :

Solder
