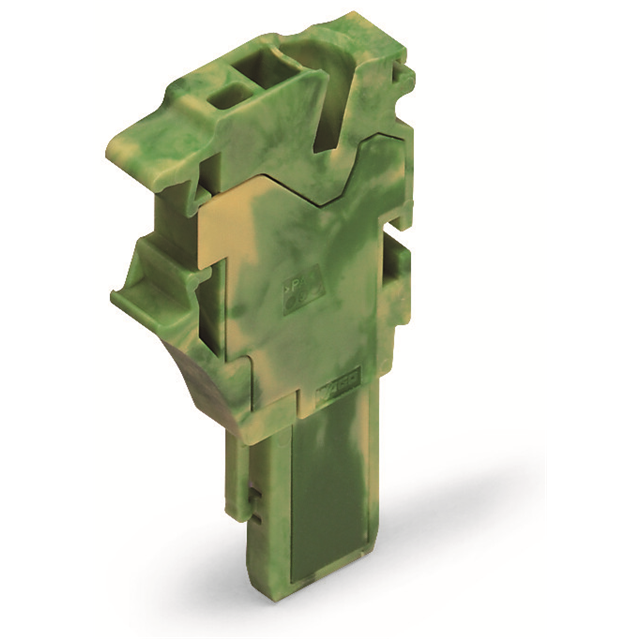

2022-167

Manufacturer :

WAGO

Product Category :

Headers, Plugs and Sockets

Minimum Operating Temperature (°C) :

-60

PPAP :

No

Type :

Terminal Block

Connectable conductor cross section solid-core :

0.75 - 4

Current Rating :

24 A

Connectable conductor cross section multi-wired :

0.25 - 2.5

Series :

X-COM® S

Gender :

F

Positions Per Level :

1

Number of Circuits :

1

Housing Color :

Green/yellow

HTS :

8536.69.80.00

Rated current In :

24

Number of Contacts :

1

Housing Material :

Polyamide (PA66), Nylon 6/6

Termination Style :

Screwless - Push-In Spring

Insulation Height :

0.882 (22.40mm)

Mounting Type :

Free Hanging (In-Line)

Wire Gauge or Range - AWG :

12-22 AWG

Screw Size :

-

Wire Gauge or Range - mm² :

0.25-4mm²

EU RoHS :

Compliant

Length :

22.4

Contact Tail Length :

-

Maximum Operating Temperature (°C) :

105

Product Status :

Active

Maximum Current Rating (A) :

32

Torque - Screw :

-

Contact Mating Finish :

-

Pitch :

-

Operating Temperature :

-

RoHS :

Compliant

Maximum Voltage Rating :

690V

Packaging :

Bag

Number of Rows :

1

ECCN (US) :

EAR99

Ingress Protection :

-

Transparent :

No

Current - IEC :

-

Contact Material :

Copper

Wire Strip Length :

10-12mm

Number of Levels :

1

Automotive :

No

Header Orientation :

-

Package :

Bag

Inflammability class of insulation material according to with UL94 :

V0

Material Flammability Rating :

UL94 V-0

Depth :

40.5

Number of Positions :

1

Flammability Rating :

UL94 V-0

Manufacturer :

Wago

Height :

22.4

Mounting :

T DIN RAIL

Connectable conductor cross section fine-strand with cable end sleeve :

0.75 - 2.5

Connectable conductor cross section fine-strand without cable end sleeve :

0.25 - 4

Plug Wire Entry :

180°

Width :

5.2 mm

Features :

-

Color :

Green
