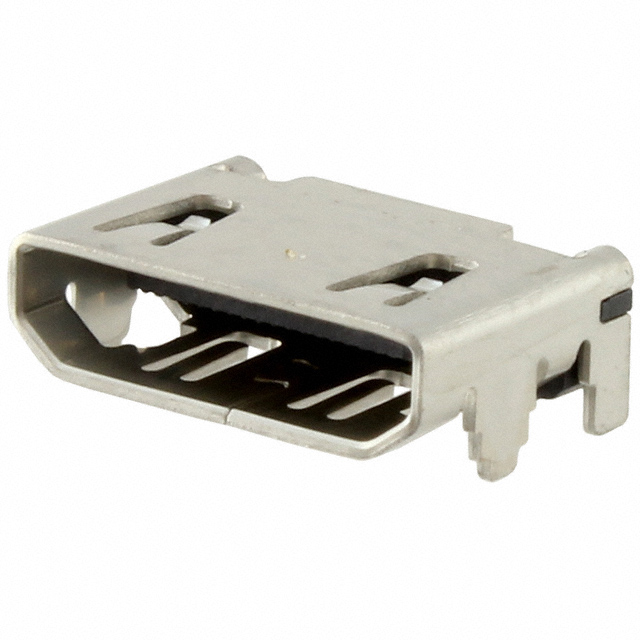

2013978-2
Or copy the link below:
- Mfr.Part #
- 2013978-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT MINI HDMI 19POS SMD RA
- Stock
- 12,007
- In Stock ：
- 12,007
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- USB, DVI, HDMI Connector Assemblies
- Contact Material :
- Copper
- Insulation Color :
- Black
- Pitch :
- 381μm
- Mounting Type :
- Surface Mount, Right Angle; Through Hole
- Published :
- 2005
- Current Rating :
- 500mA
- Number of Positions :
- 19
- Mating Cycles :
- 5000
- Body Material :
- Metal
- Length :
- 12.9mm
- Orientation :
- RIGHT ANGLE
- RoHS Status :
- RoHS Compliant
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Mounting Feature :
- Horizontal
- Connector Type :
- HDMI - Mini
- Material Flammability Rating :
- UL94 V-0
- Shell/Shielding Material :
- COPPER ALLOY
- Termination :
- Solder
- Factory Lead Time :
- 23 Weeks
- Packaging :
- Cut Tape (CT)
- Circuit Application :
- Signal
- Plating :
- Nickel, Tin
- Number of Terminations :
- 19
- Min Operating Temperature :
- -25°C
- Lifecycle Status :
- ACTIVE (Last Updated: 3 days ago)
- Number of Contacts :
- 19
- Housing Color :
- Black
- Operating Temperature :
- -25°C~70°C
- ELV :
- Compliant
- Number of Ports :
- 1
- Preloaded :
- yes
- Voltage - Rated DC :
- 40V
- Contact Plating :
- Gold
- Voltage - Rated :
- 40VAC
- Mount :
- Surface Mount
- Max Operating Temperature :
- 70°C
- Contact Current Rating :
- 500mA
- Current Rating (Amps) :
- 0.5A
- Contact Finish :
- Gold
- Gender :
- Receptacle
- Depth :
- 7.7mm
- REACH SVHC :
- Unknown
- Datasheets
- 2013978-2
2013978-2 datasheet pdf and USB, DVI, HDMI Connectors product details from TE Connectivity AMP Connectors stock available at Xinshop
