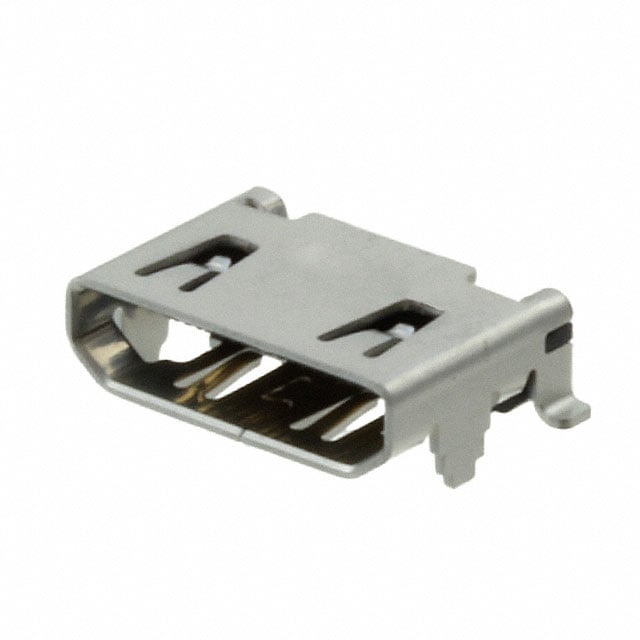

2013978-1

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

USB, DVI, HDMI Connector Assemblies

Pitch :

381μm

Filter Feature :

No

Orientation :

RIGHT ANGLE

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Polarization Key :

POLARIZED HOUSING

Mount :

Surface Mount

Radiation Hardening :

No

Number of Contacts :

19

Mixed Contacts :

No

Plating :

Nickel, Tin

Preloaded :

yes

Body Length or Diameter :

0.508 inch

Insulation Color :

Black

Mounting Feature :

Horizontal

IEC Conformance :

No

Termination :

Solder

Body Depth :

0.303 inch

Contact Finish :

Gold

Reference Standard :

UL

Lifecycle Status :

ACTIVE (Last Updated: 2 days ago)

ELV :

Compliant

Dielectric Withstanding Voltage :

300VAC V

Gender :

Receptacle

DIN Conformance :

No

Voltage - Rated :

40VAC

Current Rating (Amps) :

0.5A

Number Of PCB Rows :

1

Empty Shell :

No

MIL Conformance :

No

Insulation Material :

POLYETHYLENE

Connector Type :

HDMI - Mini

RoHS Status :

RoHS Compliant

Factory Lead Time :

23 Weeks

Number of Conductors :

ONE

Shell/Shielding Material :

COPPER ALLOY

Contact Current Rating :

500mA

Current Rating :

500mA

Pbfree Code :

yes

Reliability :

COMMERCIAL

UL Flammability Code :

94V-0

Feature :

Solder Retention

Number of Ports :

1

Option :

GENERAL PURPOSE

Mating Cycles :

5000

PCB Contact Pattern :

RECTANGULAR

Circuit Application :

Signal

Mounting Type :

Surface Mount, Right Angle; Through Hole

Material Flammability Rating :

UL94 V-0

Packaging :

Tape and Reel (TR)

Operating Temperature :

-25°C~70°C

Published :

2004

Contact Material :

Nickel
