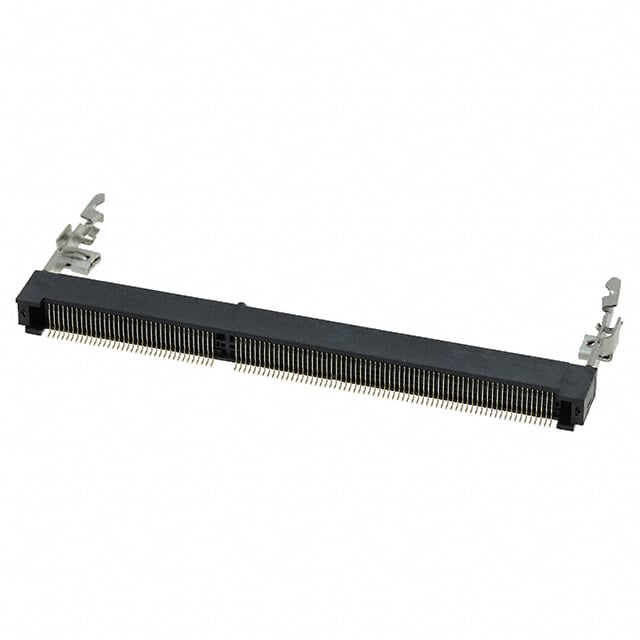

2013289-2
Or copy the link below:
- Mfr.Part #
- 2013289-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN SKT SODIMM 204POS SMD
- Stock
- 525
- In Stock ：
- 525
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Inline Module Sockets
- Number of Positions :
- 204
- Mixed Contacts :
- No
- Stack Height :
- 5.2mm
- Contact Finish Thickness :
- 10.0μin 0.25μm
- Housing Material :
- Thermoplastic
- Number of Conductors :
- ONE
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- PCB Contact Pattern :
- RECTANGULAR
- Lifecycle Status :
- ACTIVE (Last Updated: 5 days ago)
- Number Of PCB Rows :
- 2
- Rated Current (Signal) :
- 0.5A
- MIL Conformance :
- No
- Total Number of Contacts :
- 204
- Termination :
- Solder
- Mount :
- Surface Mount
- Contact Finish :
- Gold
- Max Current Rating :
- 500mA
- Insulation Resistance :
- 50000000Ohm
- Max Operating Temperature :
- 185°C
- Polarization Key :
- POLARIZED HOUSING
- ELV :
- Compliant
- Reliability :
- COMMERCIAL
- Additional Feature :
- LATCHED
- Filter Feature :
- No
- Contact Material :
- Copper
- Durability :
- 50 Cycles
- Row Spacing :
- 8.1788 mm
- Pitch :
- 609.6μm
- Feature :
- Board Guide, Latches
- Contact Gender :
- FEMALE
- Connector Style :
- SODIMM
- Length :
- 71mm
- RoHS Status :
- RoHS Compliant
- IEC Conformance :
- No
- Reference Standard :
- UL
- Flammability Rating :
- UL94 V-0
- Depth :
- 26.5mm
- Number of Rows :
- 2
- Mounting Feature :
- Normal, Standard - Top
- Contact Current Rating :
- 500mA
- Plating Thickness :
- 254 nm
- Circuit Application :
- Power
- Factory Lead Time :
- 16 Weeks
- Orientation :
- RIGHT ANGLE
- Published :
- 2010
- Packaging :
- Tray
- Connector Type :
- Socket
- Mounting Type :
- Surface Mount, 25° Angle
- Lead Free :
- Lead Free
- Contact Style :
- BELLOWED TYPE
- Voltage - Rated :
- 1.5V
- REACH SVHC :
- Unknown
- Option :
- GENERAL PURPOSE
- Memory Type :
- DDR3 SDRAM
- Min Operating Temperature :
- -67°C
- DIN Conformance :
- No
- UL Flammability Code :
- 94V-0
- Sealable :
- No
- Color :
- Black
- Datasheets
- 2013289-2
2013289-2 datasheet pdf and Memory Connectors - Inline Module Sockets product details from TE Connectivity AMP Connectors stock available at Xinshop
