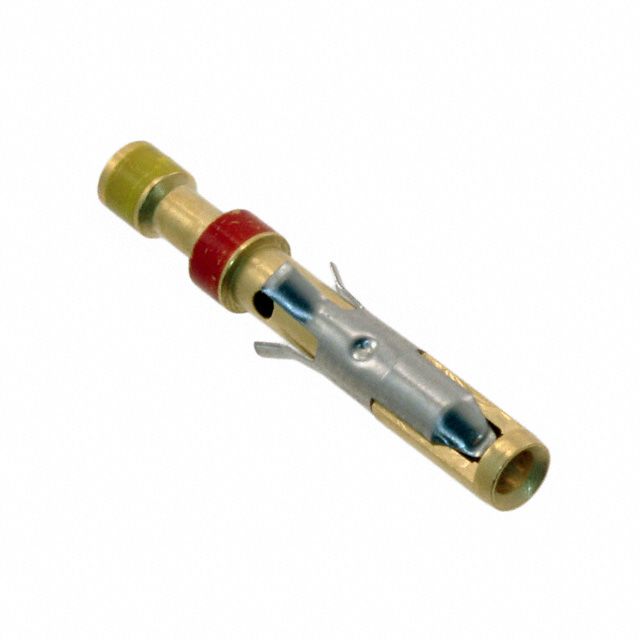

201328-1
Or copy the link below:
- Mfr.Part #
- 201328-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN SOCKET 20-24AWG GOLD CRIMP
- Stock
- 17
- In Stock ：
- 17
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Multi Purpose
- Length :
- 20.19 mm
- Packaging :
- Bag
- Shielding :
- Shielded
- Contact Size :
- 16
- Series :
- Type II
- Factory Lead Time :
- 13 Weeks
- Wire Size :
- 24 to 20, 24 AWG
- Lead Free :
- Lead Free
- IEC Conformance :
- No
- Design Use :
- Signal
- Mount :
- CABLE
- Product Category :
- Standard Circular Contacts
- Manufacturer Lifecycle Status :
- ACTIVE (Last Updated: 6 days ago)
- Family :
- 201328
- Plating :
- Gold
- Brand :
- TE Connectivity
- Reach Compliance Code :
- not_compliant
- Connector Support Type :
- CONNECTOR ACCESSORY
- Wire/Cable Type :
- Discrete
- Wire Gauge :
- 20-24(AWG)
- Cable Entry-Max :
- 0.088 inch
- Product Length :
- 20.19 mm
- Schedule B :
- 8536904000/8536904000/8536904000/8536904000/8536904000/8536904000/8536904000/8536904000/8536904000/8536904000/8536904000/8536904000/8536904000/8536904000/8536904000/8536904000/8536904000/8536904000/8536904000/8536904000/8536904000/8536904000/8536904000/85
- ECCN Code :
- EAR99
- Product Diameter (mm) :
- 3.25 mm
- Max Operating Temperature :
- 125 °C
- Body Orientation :
- Straight
- Insulation Diameter :
- 2.24 mm
- Product Length (mm) :
- 20.19(mm)
- Current Rating :
- 13 A
- Tradename :
- Multimate
- Finish Thickness :
- 30
- Current Rating (Max) :
- 13(A)
- Radiation Hardening :
- No
- Product :
- Contacts
- Brand Name :
- AMP
- Type :
- Contact
- Cable Entry-Min :
- 0.055 inch
- Termination Style :
- Crimp
- Subcategory :
- Circular Connectors
- Shell Plating :
- Not Required
- Contact Type :
- Signal
- Terminal Type :
- Crimp
- Test Current :
- 13 A
- Contact Plating :
- Gold
- Plating Thickness :
- 762 nm
- For Use With :
- CPC, G Series, M Series and Metrimate Connector Housings
- Number of Positions :
- 1
- Contact Classification :
- 1Signal
- Connector Type :
- Connector Power
- RoHS :
- Details
- DIN Conformance :
- No
- Product Type :
- Standard Circular Contacts
- Termination :
- Crimp
- Mounting Style :
- Straight
- Wire/Cable Gauge :
- 20 AWG
- Contact Gender :
- FEMALE
- HTS Code :
- 8536.90.40.00
- Shielded :
- yes
- Contact Style :
- ROUND PIN-SOCKET
- Assembly Item Name :
- Contact
- ELV :
- Compliant
- Pbfree Code :
- yes
- Used With :
- CPC SERIES 1 AND 4, G AND M SERIES CONNECTOR
- Min Operating Temperature :
- -55 °C
- Rad Hardened :
- No
- Contact Material :
- Brass
- REACH SVHC :
- Unknown
- Lifecycle Status :
- Production (Last Updated: 6 days ago)
- MIL Conformance :
- No
- Mounting :
- Cable Mount
- Material :
- Brass
- Circuit Application :
- Signal
- Number of Contacts :
- 1 POS
- Orientation :
- Straight
- Gender :
- Receptacle
- Additional Feature :
- MATING: GOLD
- Housing Material :
- Stainless Steel
- Termination Method :
- Crimp
- Strain Relief :
- No
- Datasheets
- 201328-1
