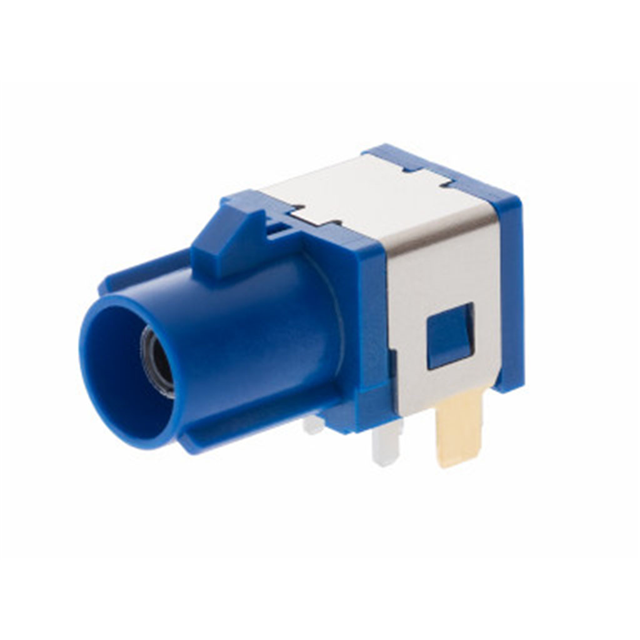

2011260003

Manufacturer :

Molex

Product Category :

Coaxial Connector (RF) Assemblies

Contact Termination :

Solder

Frequency :

6 GHz

Impedance :

50 Ohms

Body Finish :

-

Polarity :

Standard

Body Material :

Phosphor Bronze

Packaging :

Cut Tape

IP Rating :

-

RoHS :

Details

Mounting Feature :

-

Insertion Loss :

-

Orientation :

RIGHT ANGLE

Frequency - Max :

6 GHz

Shield Termination :

Solder

Mounting Type :

Through Hole, Right Angle

Package :

Tape and Reel (TR);Cut Tape (CT);

Ingress Protection :

-

Product :

PCB Connectors

Fastening Type :

Locking Ramp

Center Contact Material :

Brass

Voltage Rating :

60 V

Termination Style :

Solder

Connector Style :

SMB, Fakra

Mating Cycles :

-

Series :

201126

Housing Color :

Blue

Operating Temperature :

-40°C ~ 105°C

Includes :

-

Dielectric Material :

Liquid Crystal Polymer (LCP), Glass Filled

Gender :

Jack (Socket)

RF Series :

FAKRA

Cable Group :

-

Connector Type :

Jack, Male Pin

Features :

Code C

Mounting Style :

Through Hole

Center Contact Plating :

Gold

Number of Ports :

1

Base Product Number :

201126

Cable Type :

-

Product Status :

Active
