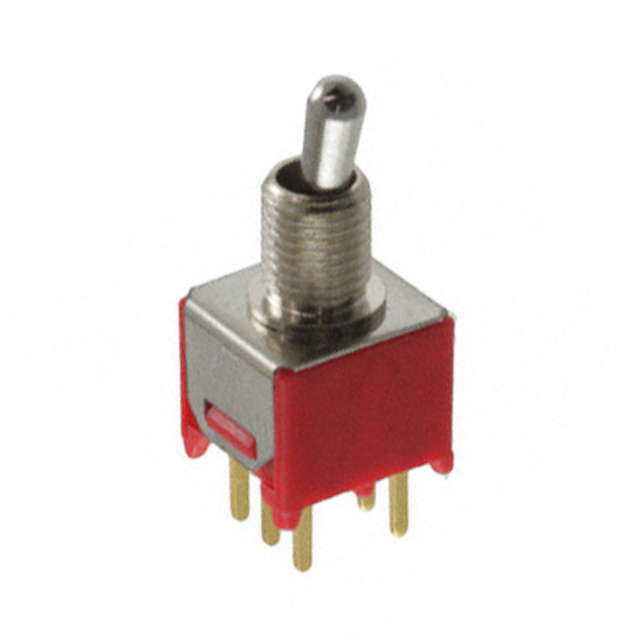

200MDP1T2B1M2RE
Or copy the link below:
- Mfr.Part #
- 200MDP1T2B1M2RE
- Manufacturer
- E-Switch
- Package / Case
- Datasheet
- Download
- Description
- SWITCH TOGGLE DPDT 0.4VA 20V
- Stock
- 128
- In Stock ：
- 128
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- E-Switch
- Product Category :
- Mount :
- Panel
- Center Contact Material :
- COPPER ALLOY
- Voltage - Rated DC :
- 20V
- Voltage - Rated AC :
- 20V
- Published :
- 2006
- Operating Temperature :
- -30°C~85°C
- RoHS Status :
- ROHS3 Compliant
- Length - Termination :
- 0.34 inch
- Current Rating (Amps) :
- 0.4VA AC/DC
- Termination :
- PC Pin
- Actuator Length :
- 5.33mm
- Terminal Material :
- COPPER ALLOY
- Feature :
- Epoxy Sealed Terminals
- Actuator Type :
- Standard Round
- Termination Style :
- PC Pin
- Body Length or Diameter :
- 9.144mm
- Electrical Life :
- 30,000 Cycles
- Actuator Material :
- Brass, Chrome Plated
- Housing Material :
- Stainless Steel
- Bushing Thread :
- 10-48
- Body Breadth :
- 8.128 mm
- ECCN Code :
- EAR99
- Circuit :
- DPDT
- Insulation Resistance :
- 1000000000Ohm
- Panel Cutout Dimensions :
- Circular - 4.95mm Dia
- Series :
- 200
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Plating :
- Gold
- Factory Lead Time :
- 9 Weeks
- Illumination :
- Non-Illuminated
- Body Height :
- 8.636mm
- PCB Hole Count :
- 6
- Dielectric Withstanding Voltage :
- 1000VRMS V
- Bushing Length :
- 0.22 inch
- Contact Resistance :
- 0.02mOhm
- Current Rating :
- 3A
- Mounting Type :
- Panel Mount
- Packaging :
- Bulk
- End Contact Material :
- COPPER ALLOY
- Contact (DC) Max Power Rating R Load :
- 0.4VA@20VDC
- Switch Type :
- TOGGLE SWITCH
- Switch Function :
- On-On
- Datasheets
- 200MDP1T2B1M2RE
