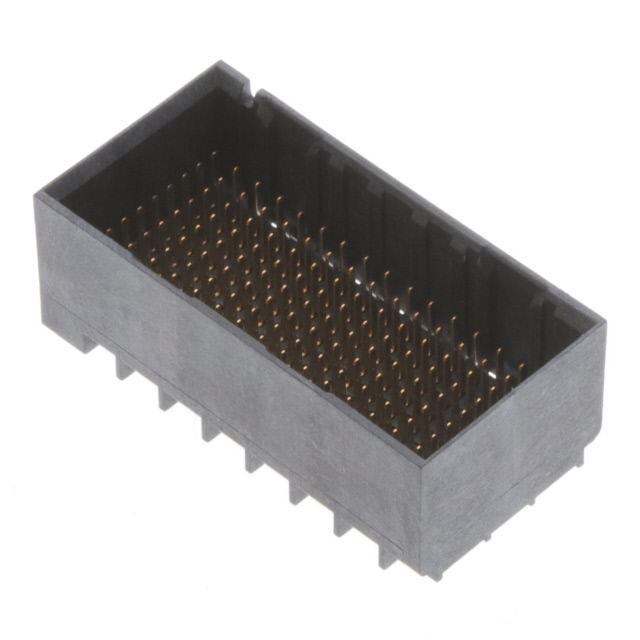

2007806-1
Or copy the link below:
- Mfr.Part #
- 2007806-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER IMPACT 144POS PCB
- Stock
- 170
- In Stock ：
- 170
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Specialized
- Max Current Rating :
- 750mA
- Color :
- Black
- Contact Finish :
- Gold
- Contact Plating :
- Gold
- Published :
- 2011
- Termination :
- Press-Fit
- Contact Material :
- Copper
- Sealable :
- No
- Max Operating Temperature :
- 85°C
- Circuit Application :
- Signal
- Series :
- Impact
- Min Operating Temperature :
- -55°C
- Number of Positions Loaded :
- All
- Number of Positions :
- 144
- Mounting Type :
- Through Hole
- Operating Temperature :
- -55°C~ 85°C
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Max Voltage Rating (AC) :
- 30V
- Voltage - Rated :
- 30VAC/DC
- REACH SVHC :
- Unknown
- Pitch :
- 0.075 1.91mm
- Contact Finish Thickness :
- 30.0μin 0.76μm
- Gender :
- Male
- RoHS Status :
- RoHS Compliant
- Number of Contacts :
- 144
- Connector Type :
- Header, Male Pins
- Lifecycle Status :
- ACTIVE (Last Updated: 4 days ago)
- Housing Material :
- Polymer
- Number of Rows :
- 9
- Mating Alignment :
- With
- Number of Columns :
- 16
- Packaging :
- Bulk
- Mount :
- Through Hole
- Current Rating (Amps) :
- 0.75A
- Connector Style :
- Impact
- Length :
- 33.1mm
- Current Rating :
- 750mA
- Material Flammability Rating :
- UL94 V-0
- Row Spacing :
- 1.35 mm
- Orientation :
- Straight
- Connector Usage :
- Backplane
- Shrouding :
- Fully Shrouded
- Depth :
- 16.7mm
- Factory Lead Time :
- 14 Weeks
- Datasheets
- 2007806-1
Impact Series Header, Male Pins Press-Fit Gold Black 30.0μin 0.76μm 144 Positions Pitch: 0.075 1.91mm -55°C~ 85°C Bulk Through Hole
2007806-1 Overview
A Header, Male Pins package is included with it.Its mounting type is Through Hole.Packaging is performed using a Bulk case.It is part of the Impact Series of products.Whenever it's below 85°C, it's best to use it.The device must operate at a temperature of -55°C at all times.Through Hole mounts the part.There is no operating temperature for the device.
2007806-1 Features
Impact series
2007806-1 Applications
There are a lot of TE Connectivity AMP Connectors
2007806-1 Backplane Connectors applications.
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
