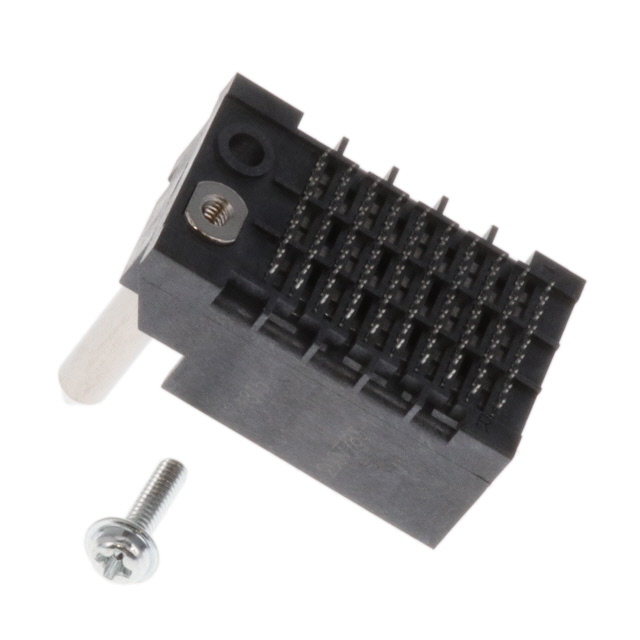

2007783-1
Or copy the link below:
- Mfr.Part #
- 2007783-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- IMP100S,H,V3P10C,RG,LEW39,4.5
- Stock
- 5
- In Stock ：
- 5
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Specialized
- Impedance :
- 100Ohm
- ELV :
- Compliant
- Housing Color :
- Black
- Contact Style :
- Press-Fit
- Plating Thickness :
- 760 nm
- Flammability Rating :
- UL94 V-0
- Row Spacing :
- 1.35 mm
- Published :
- 2011
- Reference Standard :
- UL, CSA
- Contact Pattern :
- RECTANGULAR
- Connector Type :
- PLUG
- REACH SVHC :
- Unknown
- Operating Supply Voltage :
- 30V
- Termination :
- Press-Fit, Solder
- Body Breadth :
- 0.657 inch
- PCB Contact Pattern :
- RECTANGULAR
- Polarization Key :
- POLARIZED HOUSING
- Min Operating Temperature :
- -67°C
- Number of Ground Positions :
- 30
- Reliability :
- COMMERCIAL
- RoHS Status :
- RoHS Compliant
- Body Depth :
- 0.47 inch
- Length :
- 26.9mm
- Orientation :
- Vertical
- Differential Signaling :
- yes
- Data Rate :
- 25 Gbps
- Durability :
- 200 Cycles
- Width :
- 16.7mm
- Length - Tail :
- 1.4mm
- Mating Alignment :
- With
- Mount :
- Through Hole
- Number of Contacts :
- 90
- Number of Columns :
- 10
- Number of Rows :
- 9
- Max Current Rating :
- 750mA
- Number of Signal Positions :
- 60
- Factory Lead Time :
- 19 Weeks
- Contact Plating :
- Gold, Tin
- Circuit Application :
- Signal
- Differential Pairs per Column :
- 3
- Number of Conductors :
- ONE
- Housing Material :
- Polymer
- Current Rating :
- 750mA
- Gender :
- Male
- Shrouding :
- Fully Shrouded
- Contact Current Rating :
- 750mA
- Body/Shell Style :
- Receptacle
- Lifecycle Status :
- ACTIVE (Last Updated: 3 days ago)
- Max Operating Temperature :
- 185°C
- Height :
- 24.6126mm
- Number Of PCB Rows :
- 9
- Pitch :
- 1.9mm
- Make First / Break Last :
- No
- Contact Material :
- Copper
- Rated Current (Signal) :
- 0.75A
- PCB Thickness :
- 1mm
- Underplate Material :
- Nickel
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Hole Diameter :
- 381 µm
- Datasheets
- 2007783-1
Plug Press-Fit, Solder Pitch: 1.9mm
2007783-1 Overview
It comes in Plug packaging.It's best to use it when the temperature is below 185°C.This device must operate at a minimum temperature of -67°C.The part is mounted by Through Hole.With a supply voltage of 30V, this Backplane Connector works.
2007783-1 Features
2007783-1 Applications
There are a lot of TE Connectivity AMP Connectors
2007783-1 Backplane Connectors applications.
- Industrial Automation
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
