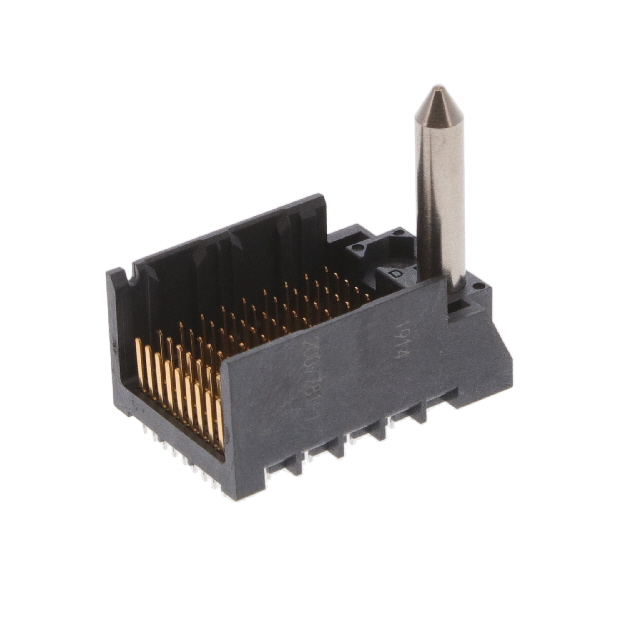

2007781-1
Or copy the link below:
- Mfr.Part #
- 2007781-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER IMPACT 90POS PCB
- Stock
- 93
- In Stock ：
- 93
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Specialized
- REACH SVHC :
- Unknown
- Voltage - Rated :
- 30VAC/DC
- Termination :
- Press-Fit
- Reliability :
- COMMERCIAL
- Flammability Rating :
- UL94 V-0
- Lifecycle Status :
- ACTIVE (Last Updated: 3 days ago)
- Published :
- 2011
- Reference Standard :
- UL, CSA
- Number of Positions Loaded :
- All
- Differential Signaling :
- yes
- Contact Material :
- Copper
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Orientation :
- Vertical
- Contact Style :
- BLADE PIN-SKT
- Housing Material :
- Polymer
- Factory Lead Time :
- 19 Weeks
- Number of Ground Positions :
- 30
- Contact Current Rating :
- 750mA
- Impedance :
- 100Ohm
- Number of Signal Positions :
- 60
- Operating Supply Voltage :
- 30V
- Number of Rows :
- 9
- Current Rating (Amps) :
- 0.75A
- Number of Columns :
- 10
- Body Depth :
- 0.47 inch
- Operating Temperature :
- -55°C~ 85°C
- Length :
- 25.5mm
- Total Number of Contacts :
- 90
- Row Spacing :
- 1.35 mm
- Make First / Break Last :
- No
- Polarization Key :
- POLARIZED HOUSING
- Plating Thickness :
- 760 nm
- Data Rate :
- 25 Gbps
- Body Breadth :
- 0.657 inch
- Underplate Material :
- Nickel
- Packaging :
- Bulk
- Differential Pairs per Column :
- 3
- Mating Alignment :
- With
- Body/Shell Style :
- Receptacle
- Series :
- Impact
- Height :
- 24.6126mm
- Number of Positions :
- 90
- Circuit Application :
- Signal
- Max Current Rating :
- 750mA
- Length - Tail :
- 1.4mm
- Mount :
- Through Hole
- Hole Diameter :
- 381 µm
- Gender :
- Male
- Width :
- 16.7mm
- Number Of PCB Rows :
- 9
- Contact Finish Thickness :
- 50.0μin 1.27μm
- Shrouding :
- Partially Shrouded
- Pitch :
- 0.075 1.91mm
- Mounting Type :
- Through Hole
- PCB Thickness :
- 1mm
- Durability :
- 200 Cycles
- Contact Finish :
- Gold
- Contact Plating :
- Gold, Tin
- Contact Pattern :
- RECTANGULAR
- PCB Contact Pattern :
- RECTANGULAR
- Color :
- Black
- Material Flammability Rating :
- UL94 V-0
- RoHS Status :
- RoHS Compliant
- ELV :
- Compliant
- Number of Conductors :
- ONE
- Current Rating :
- 750mA
- Connector Type :
- Header, Male Pins
- Datasheets
- 2007781-1
Impact Series Header, Male Pins Press-Fit Gold Black 50.0μin 1.27μm 90 Positions Pitch: 0.075 1.91mm -55°C~ 85°C Bulk Through Hole
2007781-1 Overview
The product is packaged in Header, Male Pins.This device is mounted in the Through Hole position.It has been determined that a Bulk case is necessary to package the product.There is a product in the Impact Series.Part Through Hole is mounted to the part.As a result, the device runs at -55°C~ 85°C Operating Temperature.A supply voltage of 30V is required to operate this Backplane Connector.
2007781-1 Features
Impact series
2007781-1 Applications
There are a lot of TE Connectivity AMP Connectors
2007781-1 Backplane Connectors applications.
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
