2007716-1
Or copy the link below:
- Mfr.Part #
- 2007716-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT IMPACT 120POS EDGE MNT
- Stock
- 6
- In Stock ：
- 6
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Specialized
- Contact Current Rating :
- 750mA
- Connector Usage :
- Daughtercard
- Plating Thickness :
- 1.27μm
- Contact Finish Thickness :
- 30.0μin 0.76μm
- RoHS Status :
- RoHS Compliant
- Termination :
- Press-Fit
- Lifecycle Status :
- ACTIVE (Last Updated: 2 days ago)
- Contact Style :
- SQ PIN-SKT
- Width :
- 28.2mm
- REACH SVHC :
- Unknown
- Shrouding :
- Unshrouded
- Polarization Key :
- POLARIZED HOUSING
- Length :
- 26.5938mm
- Hole Diameter :
- 381 µm
- Material Flammability Rating :
- UL94 V-0
- Pitch :
- 0.075 1.91mm
- PCB Mounting Orientation :
- RIGHT ANGLE
- Row Spacing :
- 1.35 mm
- Number of Positions Loaded :
- All
- Operating Temperature :
- -55°C~ 85°C
- Stack Height :
- 17.3mm
- Reliability :
- COMMERCIAL
- Max Voltage Rating (AC) :
- 120V
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Connector Style :
- Impact, Guide Right
- Reference Standard :
- UL, CSA
- ELV :
- Compliant
- Feature :
- Board Guide
- Number of Rows :
- 12
- Number of Signal Positions :
- 80
- Depth :
- 28.2mm
- Data Rate :
- 25 Gbps
- Published :
- 2011
- Packaging :
- Tube
- Orientation :
- RIGHT ANGLE
- Factory Lead Time :
- 14 Weeks
- Number of Positions :
- 120
- PCB Thickness :
- 1mm
- Operating Supply Voltage :
- 30V
- Mounting Type :
- Board Edge, Through Hole, Right Angle
- Housing Material :
- Polymer
- Make First / Break Last :
- No
- Underplate Material :
- Nickel
- Impedance :
- 100Ohm
- Total Number of Contacts :
- 120
- Differential Signaling :
- yes
- Mount :
- Edge, Through Hole
- Voltage - Rated :
- 30VAC/DC
- Contact Material :
- Copper
- Number Of PCB Rows :
- 12
- Connector Type :
- Receptacle, Female Sockets
- Series :
- Impact
- Length - Tail :
- 1.2mm
- Voltage - Rated DC :
- 30V
- Rated Current (Signal) :
- 0.75A
- Height :
- 17.3mm
- Color :
- Black
- Contact Finish :
- Gold
- Current Rating :
- 750mA
- Flammability Rating :
- UL94 V-0
- Mating Alignment :
- With
- Number of Columns :
- 10
- Contact Plating :
- Gold, Tin
- Max Current Rating :
- 750mA
- Number of Conductors :
- ONE
- Max Voltage Rating (DC) :
- 3.03kV
- Number of Ground Positions :
- 40
- Gender :
- Receptacle
- Contact Pattern :
- RECTANGULAR
- Differential Pairs per Column :
- 4
- PCB Contact Pattern :
- RECTANGULAR
- Circuit Application :
- Signal
- Datasheets
- 2007716-1

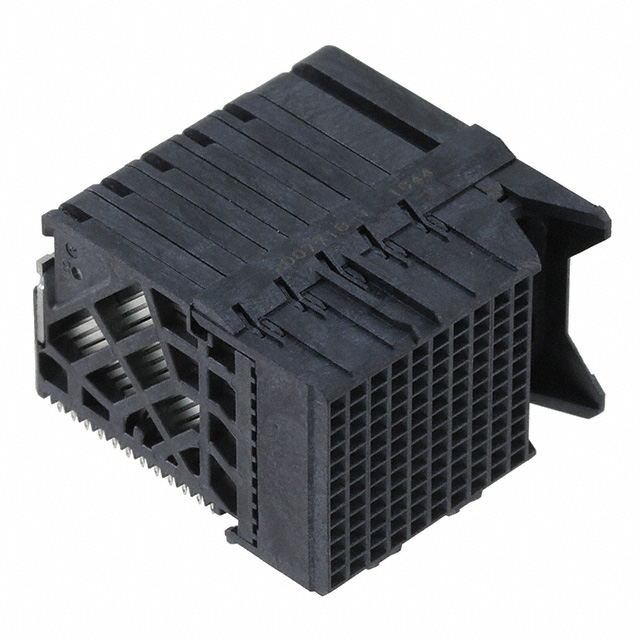

Impact Series Receptacle, Female Sockets Press-Fit Gold Black 30.0μin 0.76μm 120 Positions Pitch: 0.075 1.91mm -55°C~ 85°C Tube Board Edge, Through Hole, Right Angle
2007716-1 Overview
Packaging for this item is Receptacle, Female Sockets.There is a mounting type of Board Edge, Through Hole, Right Angle for this device.It is necessary to use a Tube case for packaging the product.This product is part of the Impact Series.In many ways, its Board Guide feature makes it more powerful.Edge, Through Hole is used to mount the part.In this case, the device operates at -55°C~ 85°C Operating Temperature.This Backplane Connector can be used with a supply voltage of 30V.
