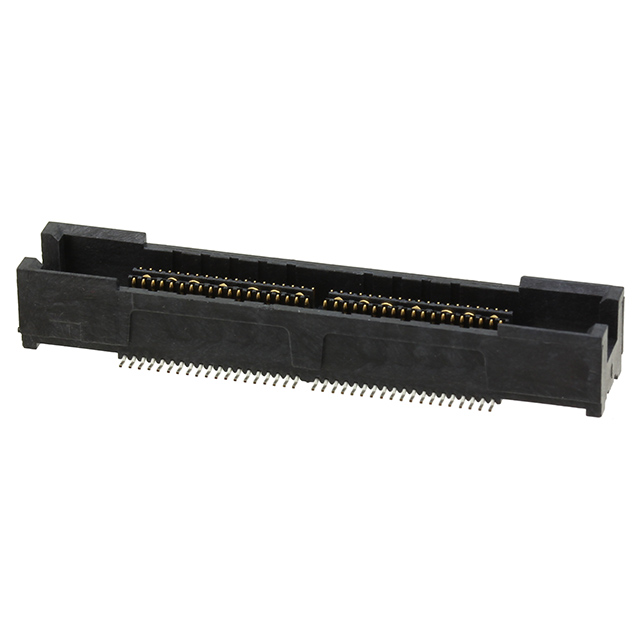

2007212-2

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Arrays, Edge Type, Mezzanine (Board to Board)

Number of Rows :

2

Underplate Material :

Nickel

Operating Supply Voltage :

30V

Insulation Resistance :

10GOhm

Number of Pins :

76

Differential Signaling :

yes

Termination :

SMD/SMT

Max Operating Temperature :

230°C

Series :

MICTOR

Plating :

Gold

Packaging :

Tube

Housing Color :

Black

Mating Alignment :

Without

Contact Finish Thickness - Mating :

3.81μm

ELV :

Compliant

Row Spacing :

5.79 mm

PCB Mounting Orientation :

Vertical

Height Above Board :

0.236 6.00mm

Gender :

Receptacle

PCB Thickness :

1.57mm

Number of Contacts :

76

Published :

2008

Stack Height :

22.86mm

Length :

38.1mm

Flammability Rating :

UL94 V-0

Height :

5.9944mm

Pitch :

0.025 0.64mm

Factory Lead Time :

25 Weeks

Housing Material :

Polymer

PCB Mount Retention :

With

Lifecycle Status :

ACTIVE (Last Updated: 1 day ago)

Number of Positions :

76

Number of Signal Positions :

76

Contact Plating :

Gold, Tin

Contact Current Rating :

12A

Min Operating Temperature :

-67°C

Feature :

Board Guide, Ground Bus (Plane)

Contact Finish Thickness :

30.0μin 0.76μm

Contact Finish :

Gold

Mounting Type :

Surface Mount

Stackable :

yes

Number of Columns :

38

Stack Height (Mating) :

6.6mm 9mm 10.92mm 12.57mm 18.75mm 22.86mm

RoHS Status :

RoHS Compliant

Orientation :

Vertical

PCB Mount Alignment :

With

Width :

6.9mm

Sealable :

No

Color :

Black

Data Rate :

10 Gbps

Number of Power Positions :

2

Circuit Application :

Signal

Connector Type :

Receptacle, Center Strip Contacts

Moisture Sensitivity Level (MSL) :

1 (Unlimited)
