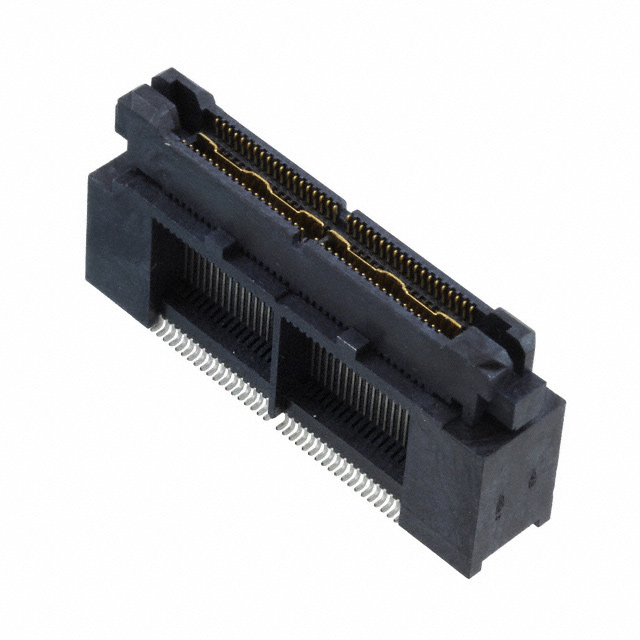

2007211-2
Or copy the link below:
- Mfr.Part #
- 2007211-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- SMD/SMT
- Datasheet
- Download
- Description
- CONN PLUG 76POS SMD GOLD
- Stock
- 17,270
- In Stock ：
- 17,270
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Arrays, Edge Type, Mezzanine (Board to Board)
- Row Spacing :
- 5.79 mm
- Mounting Type :
- Surface Mount
- Number of Power Positions :
- 2
- Length :
- 38.1mm
- Operating Supply Voltage :
- 30V
- Orientation :
- Vertical
- Published :
- 2009
- Differential Signaling :
- yes
- ELV :
- Compliant
- Connector Type :
- Plug, Outer Shroud Contacts
- Feature :
- Board Guide, Ground Bus (Plane)
- Number of Columns :
- 38
- Max Operating Temperature :
- 230°C
- Mating Alignment :
- Without
- Lifecycle Status :
- ACTIVE (Last Updated: 1 day ago)
- Packaging :
- Tube
- Mount :
- Surface Mount
- Underplate Material :
- Nickel
- Contact Current Rating :
- 12A
- Data Rate :
- 10 Gbps
- Number of Signal Positions :
- 76
- Height Above Board :
- 0.727 18.47mm
- Housing Material :
- Polymer
- Sealable :
- No
- Number of Contacts :
- 76
- Factory Lead Time :
- 4 Weeks
- Number of Positions :
- 76
- Contact Finish :
- Gold
- Insulation Resistance :
- 10GOhm
- RoHS Status :
- RoHS Compliant
- Contact Finish Thickness - Mating :
- 3.81μm
- PCB Thickness :
- 1.57mm
- Termination :
- SMD/SMT
- Height :
- 18.4658mm
- Contact Finish Thickness :
- 30.0μin 0.76μm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Series :
- MICTOR
- PCB Mounting Orientation :
- Vertical
- Contact Plating :
- Gold, Tin
- Pitch :
- 0.025 0.64mm
- Contact Shape :
- Square
- Color :
- Black
- Width :
- 8.128mm
- Stack Height :
- 27.8mm
- PCB Mount Retention :
- With
- Circuit Application :
- Signal
- Flammability Rating :
- UL94 V-0
- Plating :
- Gold
- Stackable :
- yes
- Min Operating Temperature :
- -67°C
- Number of Rows :
- 2
- Package / Case :
- SMD/SMT
- PCB Mount Alignment :
- With
- Housing Color :
- Black
- Datasheets
- 2007211-2
Plug, Outer Shroud Contacts Tube 2 Rows 0.025 0.64mm Surface Mount 76 Positions MICTOR Gold SMD/SMT
2007211-2 Overview
This product is packaged in a Plug, Outer Shroud Contacts box.An Tube case is utilized for packaging the product.Surface Mount indicates that the device is mounted.The product is a part of the MICTOR Series.It is possible to ensure that Board Guide, Ground Bus (Plane) remains constant during operation.This part must be mounted with a Surface Mount socket.Use it below 230°C.A minimum temperature of -67°C must be maintained for the operation of this device.As this device is suitable for use with a 30V supply, it can also be used with that supply.SMD/SMT refers to a package enclosing a device.
2007211-2 Features
MICTOR series
Package / Case: Tube
Mounting Type:Surface Mount
Max Operating temperature at -67°C
2007211-2 Applications
There are a lot of TE Connectivity AMP Connectors
2007211-2 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
