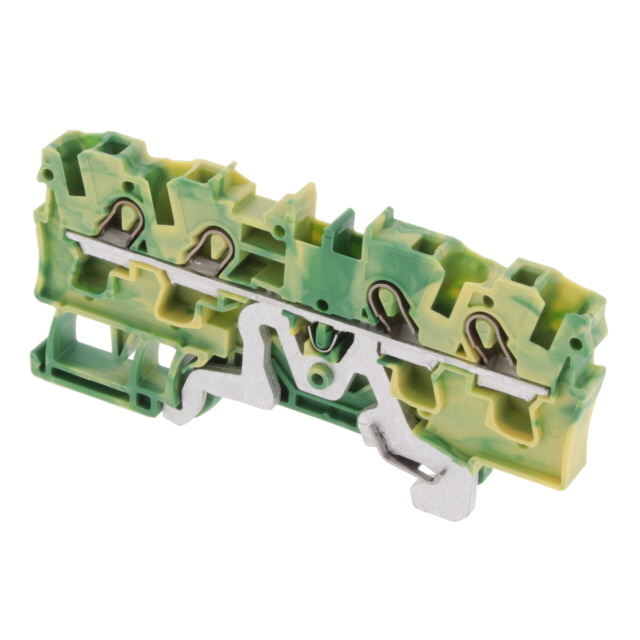

2004-1407

Manufacturer :

WAGO

Product Category :

Din Rail, Channel

Base Product Number :

2004-14

Material - Insulation :

Polyamide (PA66), Nylon 6/6

Stripping length (max.) :

13mm

AWG max. :

10

RoHS :

yes

Product Depth (mm) :

6.2(mm)

Cross section (inflexible) (max.) :

4mm²

Number of Contacts :

4(POS)

Material Flammability Rating :

-

Connectable conductor cross section fine-strand without cable end sleeve :

0.5 - 6

Packaging :

Box

Stripping Length :

11mm ~ 13mm

Features :

-

Min. stripping length :

11mm

Depth :

32.9

Rated Current :

32A

Terminal - Width :

6.2mm

Color :

Green, Yellow

Product Length (mm) :

79(mm)

No. of rows :

1

Cross section (inflexible) (min.) :

0.50mm²

Package :

Bulk

Width :

6.20mm

Housing Material :

Polyamide 6/6

Configuration :

Terre

Connectable conductor cross section multi-wired :

0.5 - 4

Current Rating :

32A

Clamp width :

6.20mm

Content :

1pc(s)

AWG (min.) :

20

Number of Positions :

4

Nominal current - rounded value :

32A

Product Status :

Active

Termination Method :

Push In

Cross section (flexible) (min.) :

0.50mm²

Termination Style :

Push In, Spring

Mounting Style :

T DIN RAIL

Voltage - UL :

-

Current Rating (Max) :

32(A)

Wire Size :

20 → 10 AWG

Series :

2004

Number of Levels :

1

Pins per row :

4

Wire Gauge :

10-20(AWG)

Voltage Rating :

800 V

Manufacturer :

Wago

Housing Color :

Green/yellow

Product Height (mm) :

33(mm)

Fuse Type :

-

Wire Gauge or Range - mm² :

1.5-6mm²

Mounting Type :

DIN Rail

Height :

78.7

Cross section (flexible) (max.) :

6mm²

Nominal current (details) :

32A

Number of Contact Rows :

4

Connectable conductor cross section fine-strand with cable end sleeve :

0.75 - 4

Rad Hardened :

No

Wire Gauge or Range - AWG :

10-14 AWG

Type :

EARTH TERMINAL

Rated Voltage :

800V

Contact Pitch (mm) :

Not Required(mm)

Nominal current :

32A

Connectable conductor cross section solid-core :

1 - 6

Length :

79

Manufacturer part # :

2004-1407

Connection :

-

Voltage - IEC :

-

Inflammability class of insulation material according to with UL94 :

V0

Disconnect Type :

-
