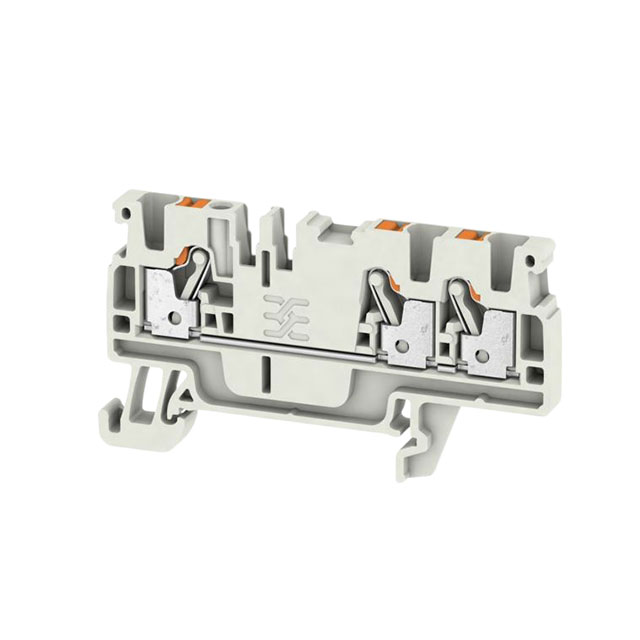

2003120000

Manufacturer :

Weidmuller

Product Category :

Din Rail, Channel

RoHS-compliant :

yes

Cross section (inflexible) (min.) :

0.5mm²

Product Category :

DIN Rail Terminal Blocks

Inflammability class of insulation material according to with UL94 :

V0

Cross section (flexible) (min.) :

0.5mm²

Connectable conductor cross section solid-core :

0.5 - 2.5

Color :

Light Gray

Reach Compliance Code :

Compliant

Nominal voltage (details) :

800V

Width :

5.1mm

Subcategory :

Terminal Blocks

Manufacturer part # :

2003120000

Depth :

36.5

Factory Lead Time :

12 Weeks, 1 Day

Connectable conductor cross section fine-strand without cable end sleeve :

0.5 - 2.5

Clamp width :

5.1mm

Terminal and Terminal Block Type :

MODULAR TERMINAL BLOCK

Cross section (inflexible) (max.) :

2.5mm²

AWG (min.) :

28

Connections :

3

Nominal voltage :

800V

Rated current In :

24

Length :

36.5mm

Cross section (flexible) (max.) :

2.5mm²

Stripping length (max.) :

10mm

Product Type :

DIN Rail Terminal Blocks

Content :

100pc(s)

Connection :

Pull spring

AWG max. :

12

Height :

66.5mm

Connectable conductor cross section multi-wired :

0.5 - 2.5

Connectable conductor cross section fine-strand with cable end sleeve :

0.5 - 2.5

Nominal current - rounded value :

24A

Nominal current :

24A

Nominal current (details) :

24A

Type :

A3C 2.5 LTGY

Brand :

Weidmuller
