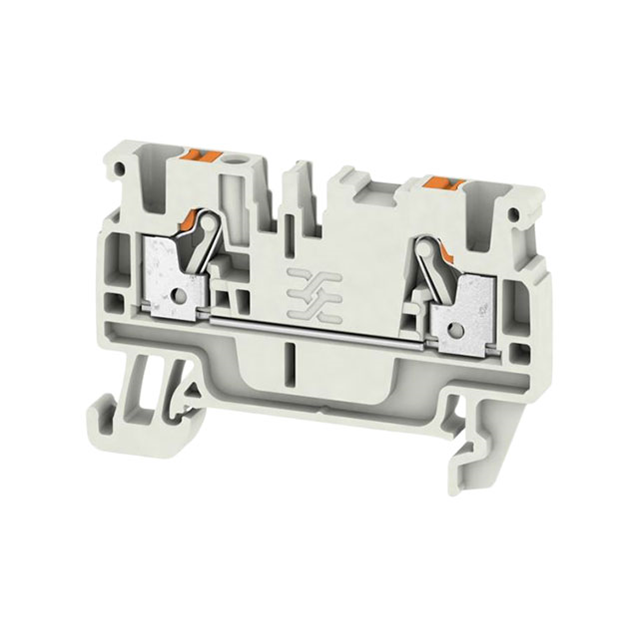

2003110000

Manufacturer :

Weidmuller

Product Category :

Din Rail, Channel

Maximum Operating Temperature :

+ 130 C

Cross section (flexible) (max.) :

2.5mm²

Cross section (flexible) (min.) :

0.5mm²

Nominal current :

24A

Manufacturer part # :

2003110000

Nominal voltage :

800V

Connections :

2

Length :

36.5 mm

Industrial packaging :

yes

AWG (min.) :

28

Color :

Light Gray

Housing Material :

Thermoplastic (TP)

Nominal current (details) :

24A

Connectable conductor cross section fine-strand without cable end sleeve :

0.5 - 2.5

Width :

5.1 mm

Nominal current - rounded value :

24A

Connectable conductor cross section multi-wired :

0.5 - 2.5

Voltage Rating :

800 V

Connectable conductor cross section solid-core :

0.5 - 2.5

Minimum Operating Temperature :

- 60 C

Mounting Style :

DIN Rail

Rated current In :

24

Height :

55 mm

Type :

Feed Through Terminal Block

Connection :

Pull spring

Cross section (inflexible) (max.) :

2.5mm²

Current Rating :

24 A

Connection Method :

Push-In

AWG max. :

12

Clamp width :

5.1mm

Depth :

36.5

Connectable conductor cross section fine-strand with cable end sleeve :

0.5 - 2.5

Content :

100pc(s)

Inflammability class of insulation material according to with UL94 :

V0

Number of Positions :

2 Position

Flammability Rating :

UL 94 V-0

RoHS-compliant :

yes

Cross section (inflexible) (min.) :

0.5mm²

Nominal voltage (details) :

800V

Stripping length (max.) :

10mm
