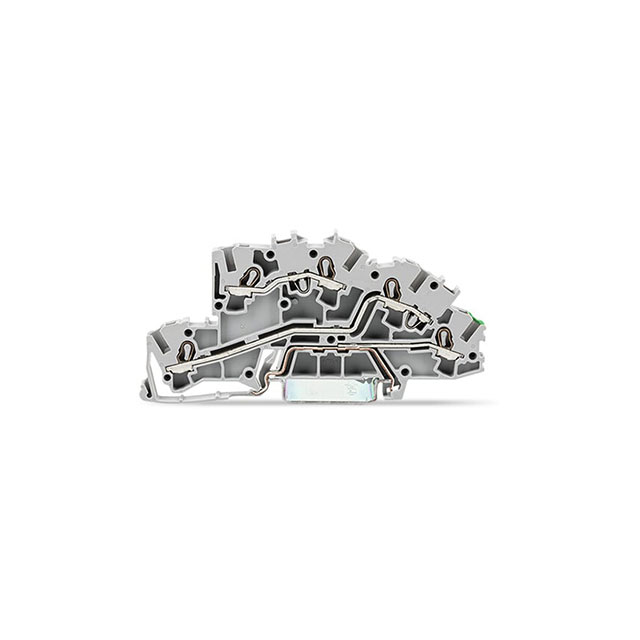

2003-7645

Manufacturer :

WAGO

Product Category :

Din Rail, Channel

Nominal current (details) :

32A

Min. stripping length :

10mm

Material - Insulation :

Polyamide (PA66), Nylon 6/6

HTS :

8536.90.40.00

Number of Rows :

3

Cross section (flexible) (min.) :

0.25mm²

Mounting Type :

DIN Rail

Number of Pins :

3

Type :

Terminal Block

Number of Circuits :

2

Termination Style :

Push In, Spring

Termination Method :

Spring Clamp

Height :

96

Series :

TOPJOB®S

No. of rows :

3

Connectable conductor cross section fine-strand with cable end sleeve :

0.75 - 2.5

EU RoHS :

Compliant

Wire Gauge or Range - AWG :

12-22 AWG

AWG max. :

14

Maximum Current Rating (A) :

32

Wire Gauge or Range - mm² :

0.25-4mm²

Cross section (inflexible) (min.) :

0.25mm²

Disconnect Type :

-

Width :

5.20mm

Manufacturer part # :

2003-7645

Number of Contacts :

5

Clamp width :

5.20mm

Current - IEC :

32 A

Inflammability class of insulation material according to with UL94 :

V0

Depth :

42.3

Cross section (inflexible) (max.) :

4mm²

Automotive :

No

Features :

-

Configuration :

L,L,Terre

Nominal current :

32A

Housing Material :

Nylon

Product Status :

Active

Flammability Rating :

UL94 V-0

AWG (min.) :

22

Connectable conductor cross section solid-core :

0.75 - 4

Nominal current - rounded value :

32A

Connectable conductor cross section fine-strand without cable end sleeve :

0.25 - 4

Pins per row :

1

Weight :

0.02

Color :

Gray

Terminal - Width :

5.2mm

Voltage - UL :

-

Package :

Box

RoHS :

yes

ECCN (US) :

EAR99

Material Flammability Rating :

UL94 V-0

Voltage - IEC :

400V

Rated current In :

32

Mounting :

T DIN RAIL

Cross section (flexible) (max.) :

2.50mm²

Fuse Type :

-

Connection :

-

Length :

96

Connectable conductor cross section multi-wired :

0.25 - 2.5

Stripping Length :

10mm ~ 12mm

Stripping length (max.) :

12mm

Current Rating :

32 A

Number of Positions :

5

Tradename :

CAGE CLAMP?

Content :

1pc(s)

Nominal voltage :

250V

Number of Levels :

3; 1 Grounded

PPAP :

No

Manufacturer :

Wago
